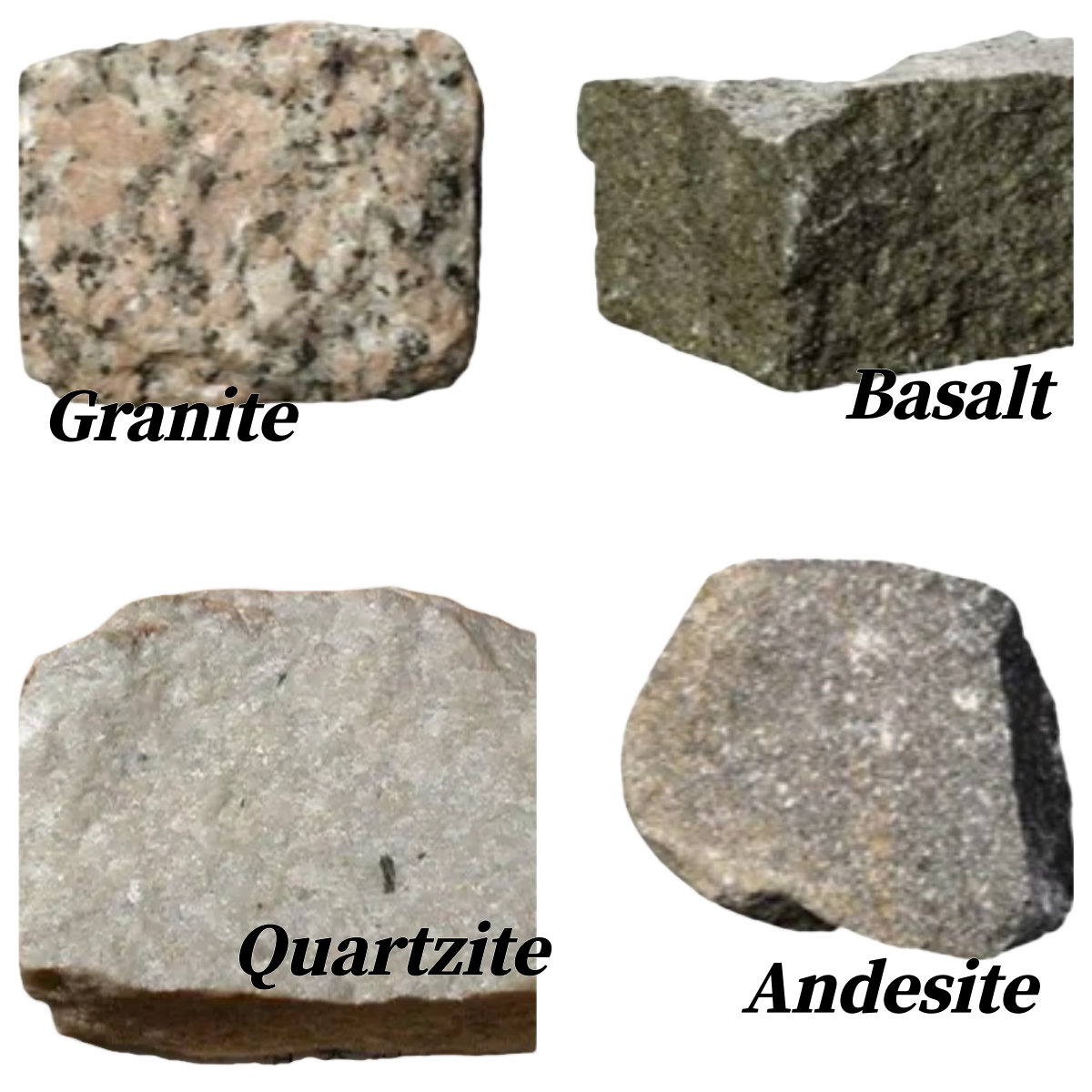

Choosing the right crushing equipment is crucial for processing hard rocks such as granite, basalt, and quartzite, as well as corrosive materials. Inappropriate equipment selection can lead to insufficient capacity, rapid equipment wear, and excessive costs for crushing plant owners.
Sandreck, a professional stone crusher manufacturer, will introduce suitable machine solutions for crushing hard rock in this article.
Mature Solutions for Hard Rock Crushing: Jaw Crusher + Cone Crusher
1. Jaw Crusher – Primary Crushing
The jaw crusher is a primary crushing device specifically designed for hard rock crushing. It is the first hurdle in the crushing process, and its reliability directly affects the smooth operation of the entire production line.
When selecting a jaw crushing machine, you need to consider the following factors:
Robust Frame: Choose a jaw crusher with a frame made of thickened steel plates. Even under harsh working conditions, this prevents frame deformation or cracking, ensuring long-term stable operation of your production line.
Sturdy and Durable: Please pay attention to whether wear parts like the jaw plates and cheek plates are made of high manganese steel. This material can withstand the impact of large feed material, extending the life of wear parts and saving you maintenance costs.
High Reduction Ratio: The deep crushing cavity design allows for direct crushing of large raw stones up to ≤1500mm in size. No pre-processing is needed, saving you initial investment and time.
Easy Adjustment: We recommend choosing a jaw crusher with a hydraulic wedge adjustment system. This allows you to adjust the discharge opening size (to any target size between 5mm and 40mm) either during operation or while stopped, significantly reducing downtime.
Cone Crusher – Secondary Crushing
The cone crusher is a commonly used secondary crushing equipment (for medium and fine crushing) in hard rock processing. It utilizes the principle of “inter-particle crushing,” crushing materials through the compression and impact between particles. This significantly reduces wear on vulnerable parts, thereby saving operating costs.
When selecting a cone crusher, please consider the following points:
Wide Application Range: Choose a cone crusher that allows easy switching between medium and fine crushing chamber types by changing the liner plates to meet your different crushing needs.
Excellent Product Shape: Choose a cone crusher capable of producing cubical finished products with a low flake ratio. This eliminates the need for a separate vertical shaft impact crusher to meet the material requirements of high-standard sand and gravel aggregates.
Overload Protection System: Choose a cone crusher equipped with an overload protection system. When oversized materials or uncrushable foreign objects (such as iron blocks) enter the crushing chamber, the system can automatically discharge the foreign objects and reset. No manual cleaning is required, ensuring uninterrupted production.
Robust and Durable: Ensure that its core wear-resistant components (such as the crushing bucket, concave plate, liner plates, etc.) are made of special alloy steel. This material can improve wear resistance by 30-50%.
Hard Rock Crushing Production Line Supporting Equipment
Hard rock crushing is a complex system engineering project, not something that can be completed by a single piece of equipment. It requires precise coordination of every stage, from feeding, crushing, screening to conveying.
We have listed the supporting equipment for you:
- Feeder: Choose a vibrating grizzly feeder (bar feeder). It provides a uniform and stable feed to the jaw crusher while screening out fine materials and impurities. This is the first step in creating stable conditions for subsequent crushing.
- Vibrating Screen: When selecting, consider the material characteristics and final product requirements, and choose the appropriate model and screen material to ensure it meets your precise screening needs.
- Belt Conveyor: Connects the various stages of the hard rock crushing plant, transporting materials.
- Vertical Shaft Impact Crusher (Sand Making Machine): If you require a high-quality sand making machine, you need to choose a vertical shaft impact crusher.
If you are currently selecting equipment for your hard rock crushing plant, we hope this article is helpful. If you have any further questions, please contact us. Our technical team will provide you with one-on-one customized service.
