Vertical Shaft Compound Crusher
A vertical compound crusher, also known as a CNC sand machine, is a commonly used piece of equipment in sand-making and crushing production lines.
- Motor power: 37-250 KW
- Feed Size: ≤ 100MM
- Output: 20-200 T/H
Sandreck's Premium Vertical Compound Crusher
The Sandreck vertical compound crusher (CNC sand machine) is a new type of crushing equipment developed by our company. It integrates advanced fine-crushing technologies from home and abroad and addresses the problems of low finished-product productivity and high energy consumption in similar equipment on the market.
Sandreck CNC sand machine has a high crushing ratio and adjustable discharge particle size, and is unaffected by plate hammer and liner wear. It is exported to more than 100 countries and regions worldwide. Welcome to buy.
Vertical Compound Crusher Advantages
No screen bar setting; materials with high water and mud content will not be blocked.
The equipment is easy to operate and can switch between manual and automatic oiling methods.
The wearing parts are made of multi-alloy wear-resistant materials, increasing service life by 2-3 times.
It can be used for coarse, medium, fine, and ultra-fine crushing production projects.
Reasonable structural design reduces unnecessary energy consumption during operation.
The equipment has low working noise and dust emissions that meet environmental protection standards.
Wide Application
Vertical compound crusher is widely used in mining, metallurgy, refractory materials, cement, coal, glass, ceramics, electricity, and other industries.
Your Reliable Sand Crusher Factory
Sandreck is a leading sand making equipment manufacturer in China. For more than 20 years, we have been committed to developing efficient CNC sand-making machines for a range of materials, including granite and river pebbles! Its design is durable, energy-efficient, and environmentally friendly, and it is ISO-certified. You can customize the output and capacity to reduce costs and increase profits.
Create an Efficient and Stable Vertical Compound Crusher for You
Accurate Requirements Analysis
Our engineers evaluate your material characteristics (hardness, moisture content, and abrasiveness), target output, and requirements for the shape of the finished particles to provide a highly precise solution tailored to your needs.
Comprehensive System Integration
You need not worry about auxiliary equipment. We design a complete system centered on your vertical shaft compound crusher —incorporating feeding, screening, dust removal, and conveying—to ensure seamless integration into your production line from day one and enable a smooth, continuous workflow.
Why Choose Our Vertical Shaft Compound Crusher
The vertical compound crusher uses an advanced PLC and touchscreen control, allowing features such as “one-touch start and stop,” “online modification of parameters,” “real-time monitoring,” and “fault self-diagnosis.”
The vertical-shaft compound crusher is equipped with highly wear-resistant components, such as impact blocks and throwing heads. These components are manufactured from ultra-wear-resistant materials (such as high-chromium alloys and tungsten carbide).
The sand making machine uses a hydraulically operated cover opening, allowing quick and easy inspection and replacement of wear parts.
The vertical compound crusher employs the highly efficient “rock-on-rock” or “rock-on-metal” crushing principle, ensuring excellent particle shape (high cubicity, low content of flaky or elongated particles) and strict control over stone dust content.

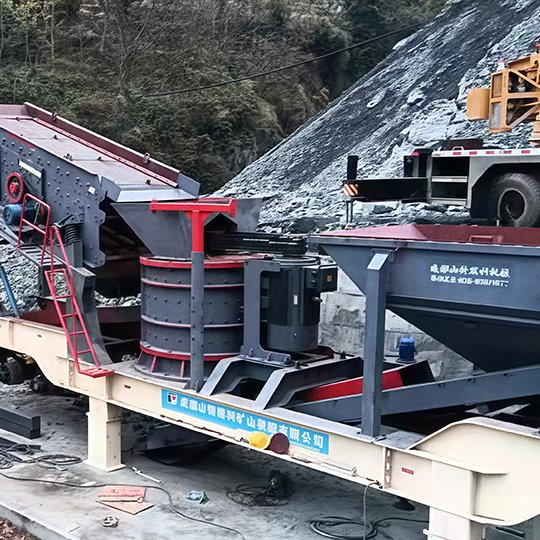

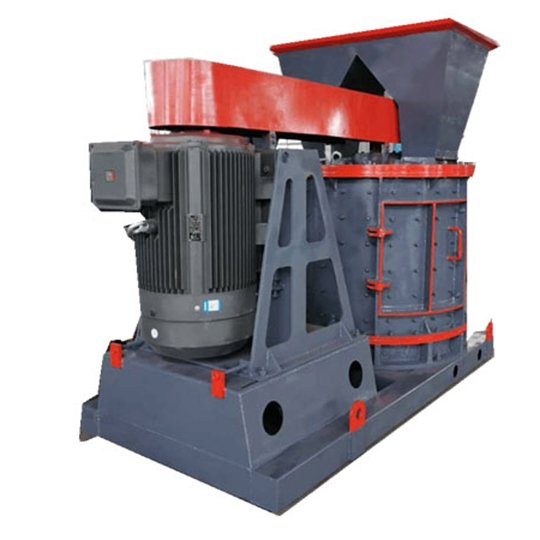

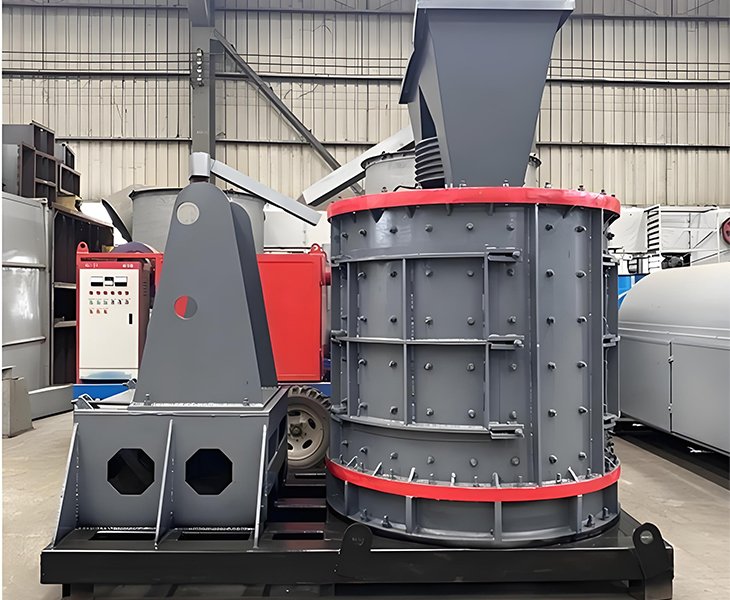

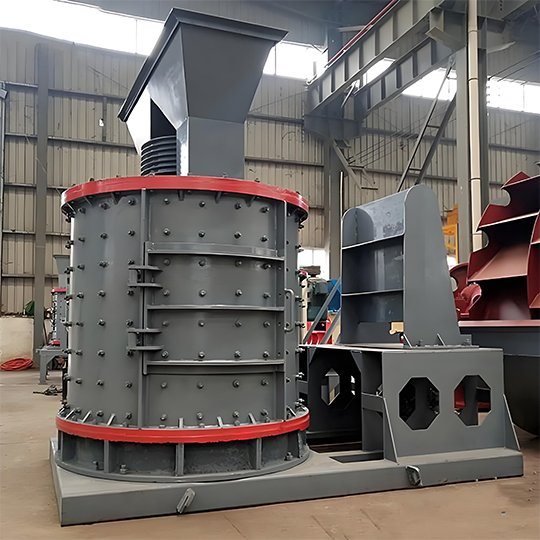

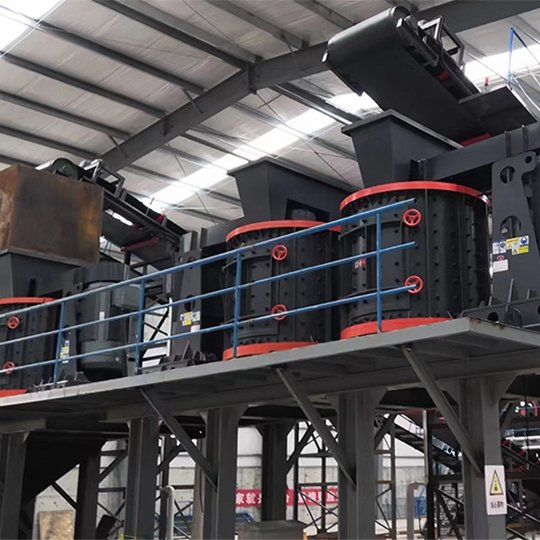

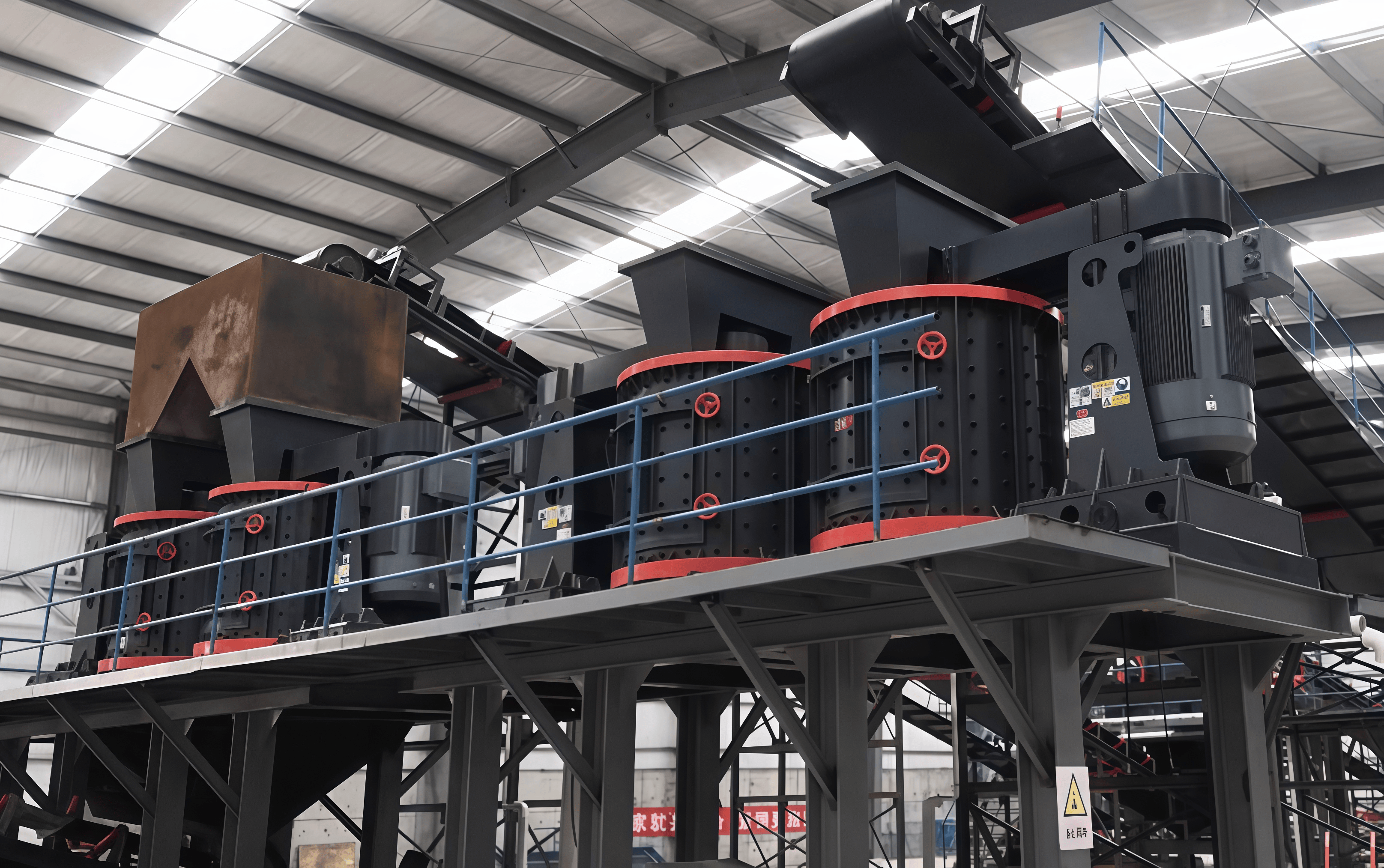

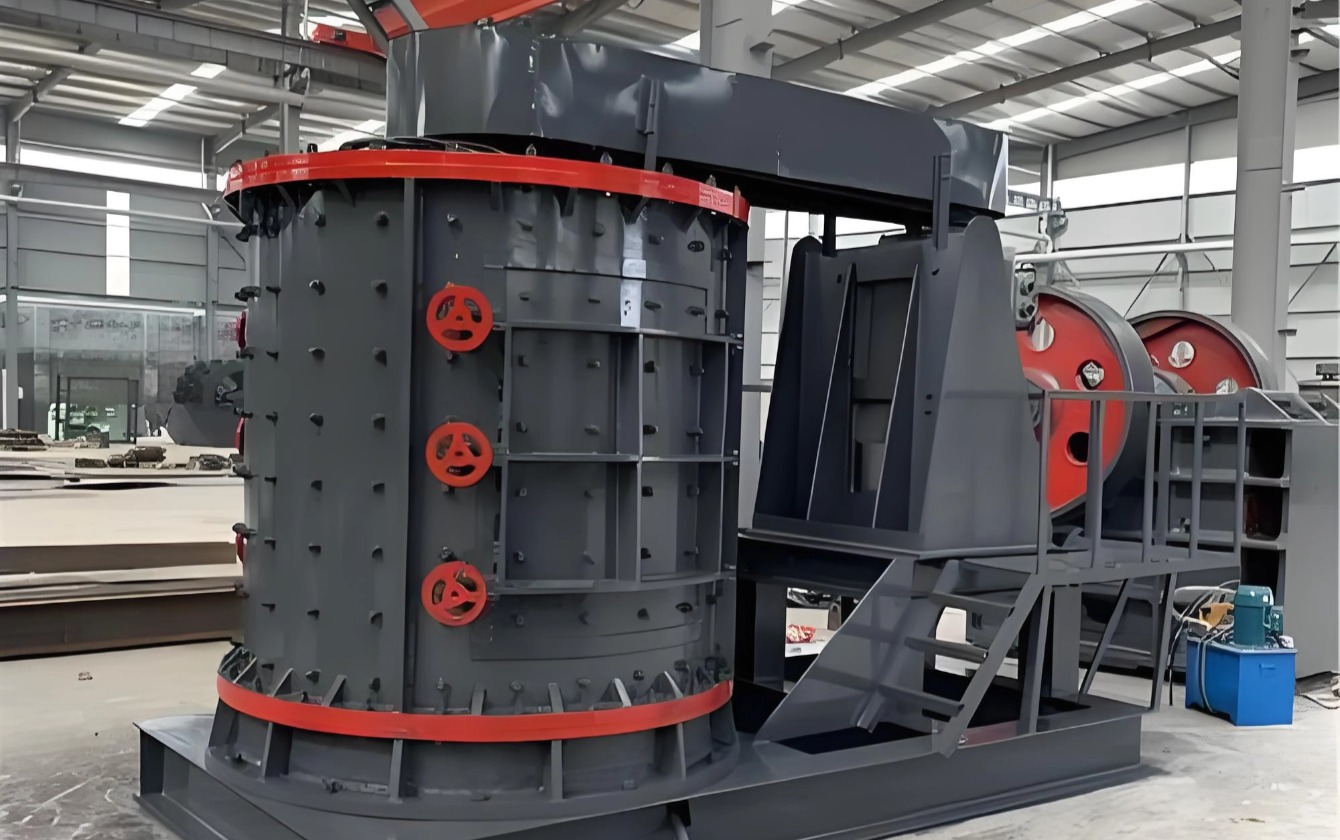

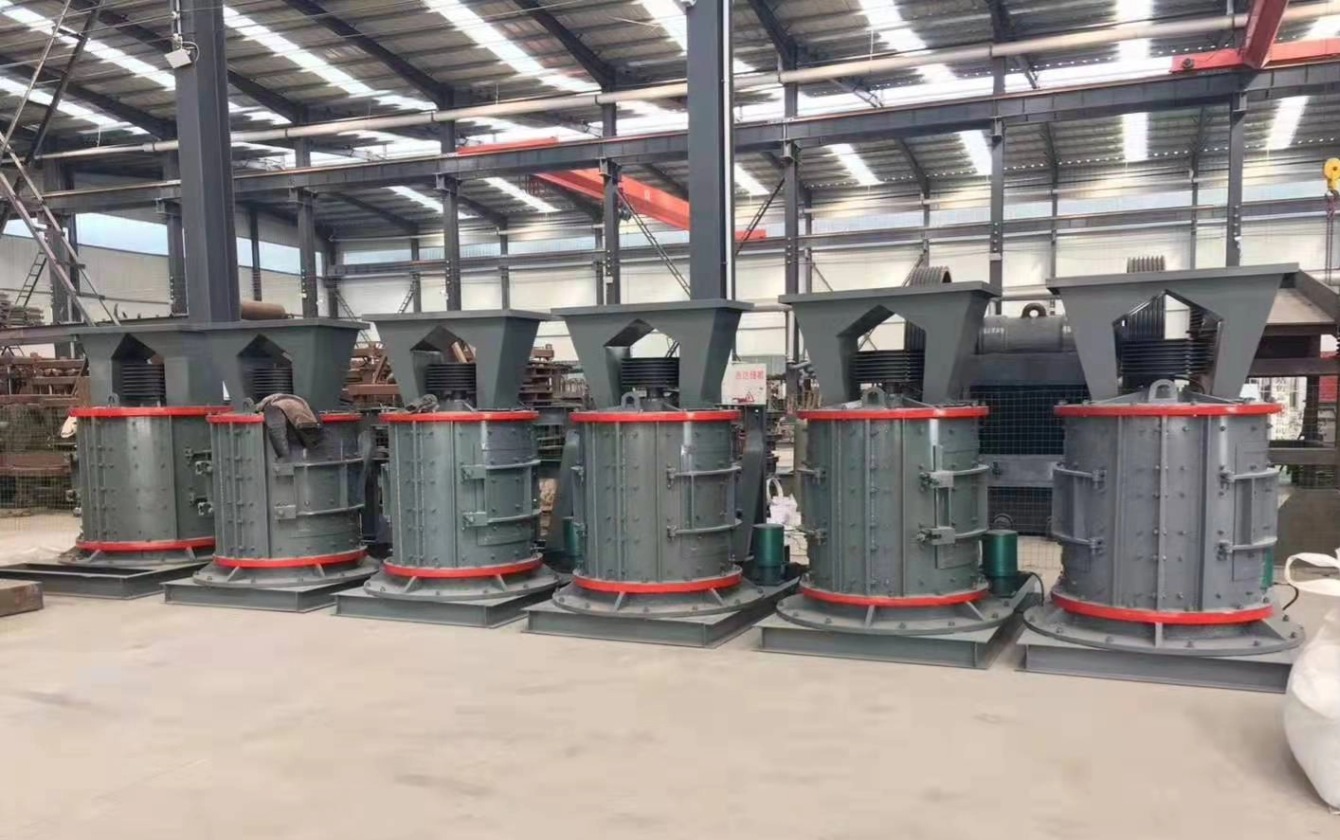

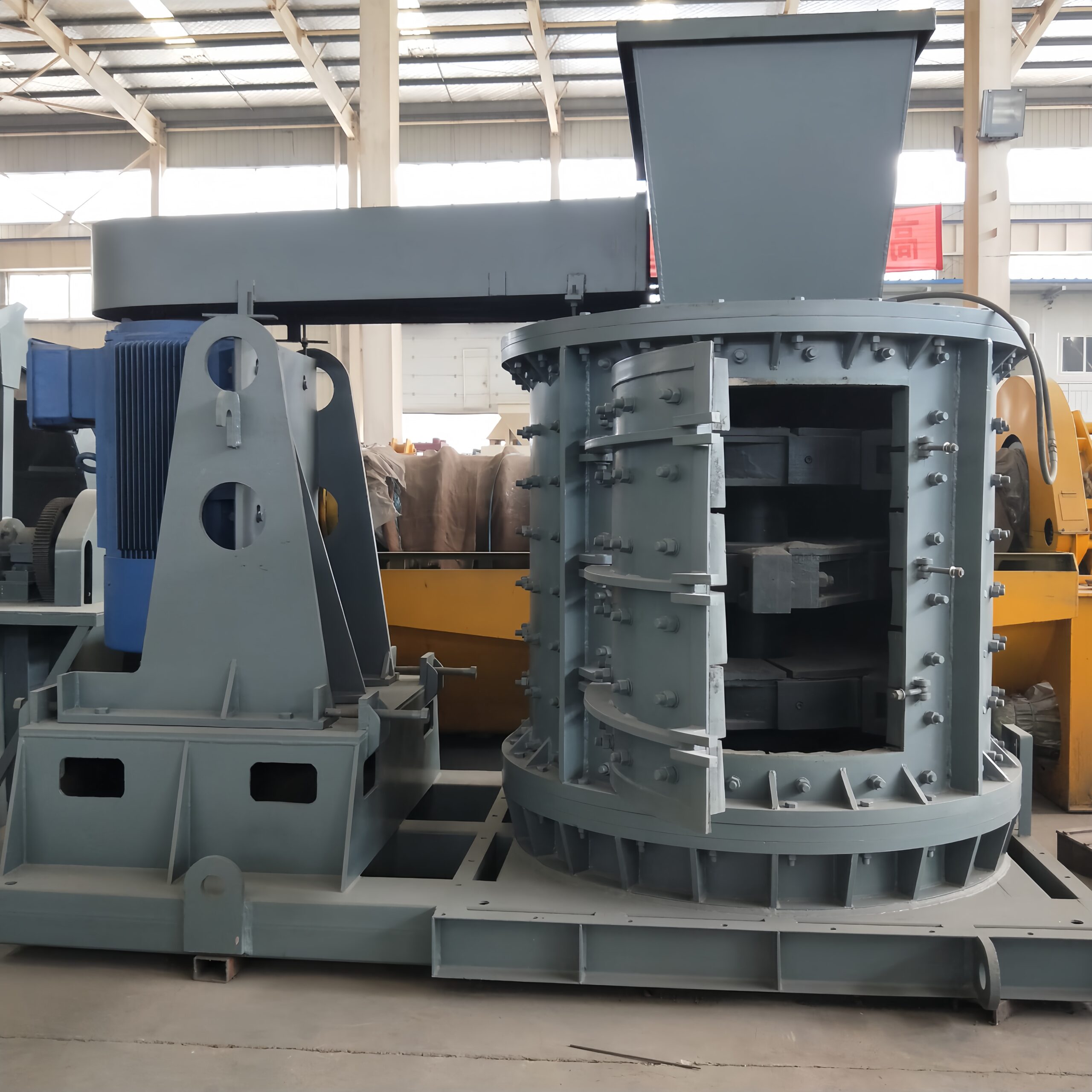

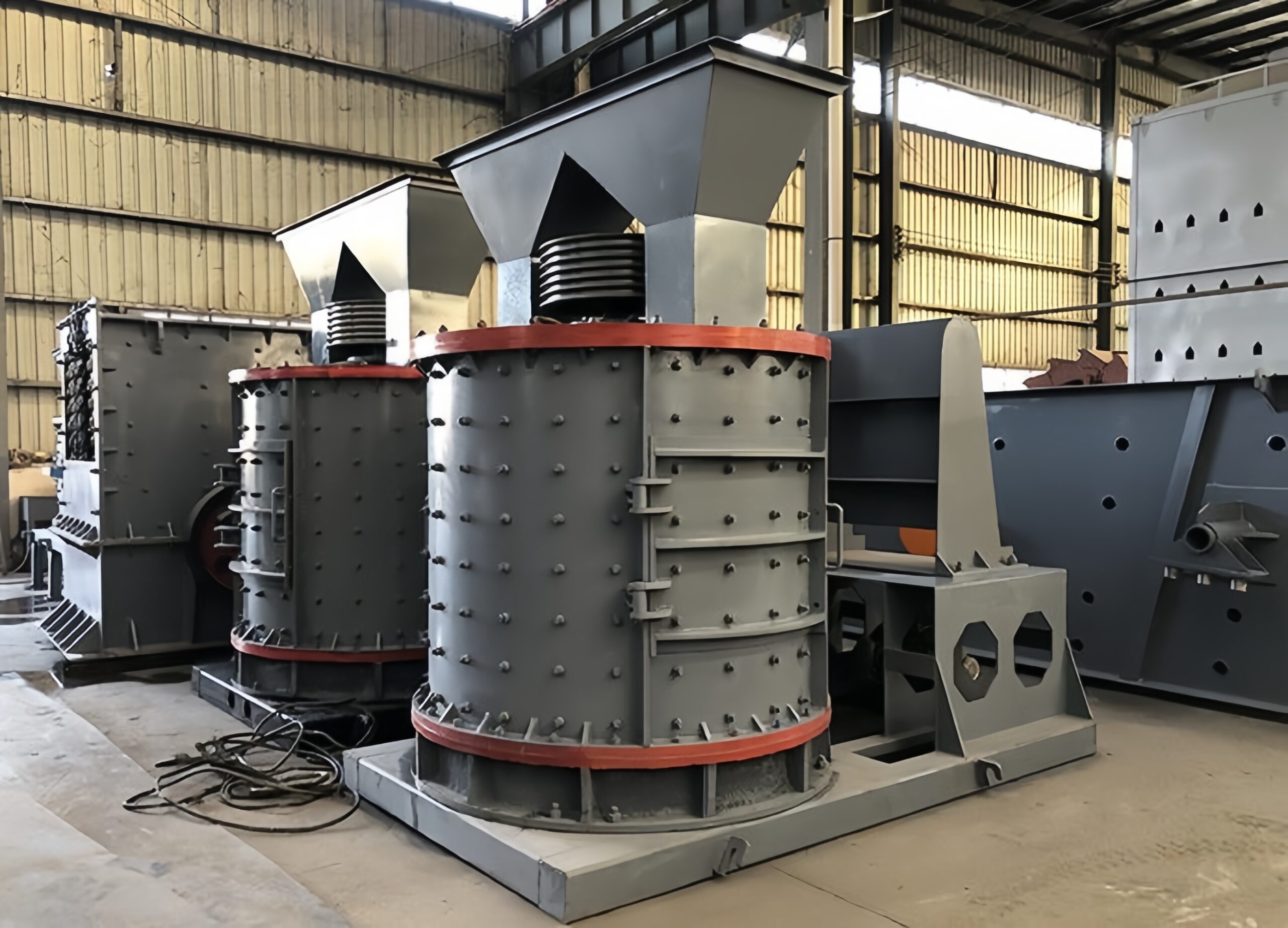

Vertical Compound Crusher Pictures
Made in China, support customization, low consumption and high production, click to get exclusive solutions!
More About Our Machine
- Technical Parameters
| Specifications | Cylinder Diameter（mm） | Production Capacity（t/h） | Feed Size（mm） | Discharge Size（mm） | Yield （percentage） | Motor Power(kw) | Dimensions(mm) |
| SKZS-800 | 800 | 8-15 | ≤40 | Adjustable Below 5mm | 60-95% | 37-45 | 2100x1000x1700 |
| SKZS-1000 | 1000 | 10-25 | ≤45 | Adjustable Below 5mm | 60-95% | 55 | 2600x1400x1900 |
| SKZS-1250 | 1250 | 20-40 | ≤60 | Adjustable Below 5mm | 60-95% | 110-132 | 2800x1600x2100 |
| SKZS-1500 | 1500 | 30-60 | ≤70 | Adjustable Below 5mm | 60-95% | 132-160 | 3100x1900x2200 |
| SKZS-1750 | 1750 | 50-100 | ≤80 | Adjustable Below 5mm | 60-95% | 200-220 | 3710x2360x2390 |
| SKZS-2000 | 2000 | 80-130 | ≤100 | Adjustable Below 5mm | 60-95% | 132*2 | 4100x2600x2620 |
Testimonials
“The vertical compound crusher has become the backbone of our limestone processing plant, delivering unmatched efficiency in size reduction. Its unique combination of hammer and grinding-cavity design achieves an 85% reduction to under 5mm in a single pass, eliminating our need for secondary crushing. We’ve recorded a 30% decrease in power consumption compared to traditional jaw crushers while maintaining a steady 50 TPH output. The water-cooled bearing system has proven particularly valuable in our tropical climate, reducing thermal shutdowns to zero over 12 months of operation. Maintenance is remarkably simple thanks to the hydraulic adjustment of discharge size and quick-access inspection doors. After processing 200,000 tons of abrasive material, the chromium alloy wear parts still show less than 15% deterioration – a testament to its robust construction.”
Wang JianjunOperations Director
Including main shaft, hammer head, liner, impact plate, pulley, frame, screen plate, and other parts.
Ensure that the equipment is firmly installed, the feed is even during operation, and it is lubricated and maintained regularly.
We are the source factory of China’s sand making machine, and each unit is sold at ex-factory price. You can leave a message via WhatsApp (+8613666293477), and we will contact you as soon as possible.
Related Product

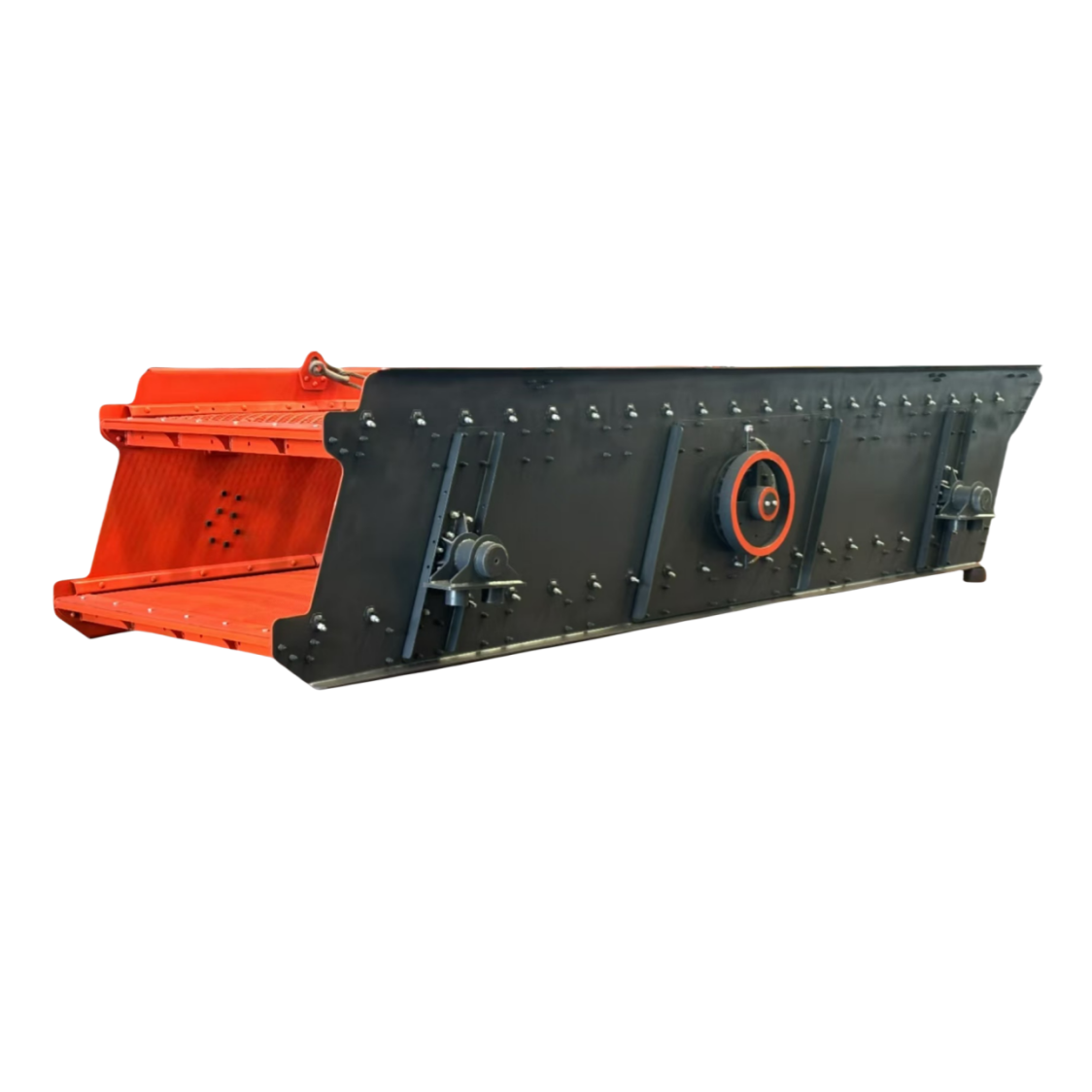

Used for grading and screening of minerals, quarries, building materials, etc.
