Intelligent Sand Washer Machine
Sandreck’s sand washing machine is an industrial machine that utilises advanced water-washing technology to professionally remove surface impurities from sand and gravel, significantly improving material quality.
Our sand washer utilises a water flow and mechanical agitation system to achieve two core functions:
Efficiently separate dirt, dust, and other impurities from sand and gravel.
Completely decomposes the water vapour layer on the sand’s surface, creating favourable conditions for subsequent dehydration.
Advanced Sand Washing Machine Manufacturers
Sandreck is a professional sand washing machine manufacturer in China. Our sand washers are designed for natural and manufactured sands with high clay content, delivering exceptional washing efficiency.
Sandreck sand washing machines can process challenging materials, including river sand and tailings. Within sand and aggregate production lines, they effectively remove clay, dust, and other impurities from crushed aggregates.
With a wide range of equipment specifications and expert customisation capabilities, we provide optimal sand washing solutions for aggregate plants, concrete batching stations, and various engineering projects.
Our integrated tailings recovery units are designed to work in tandem with spiral and wheel-type sand washers. All equipment is available in various models and specifications, allowing you to select the best fit for your specific production requirements.
Product By Features
Sandreck’s sand washer machine plays a key role in the sand and gravel purification process. We offer complete sand washing system solutions.

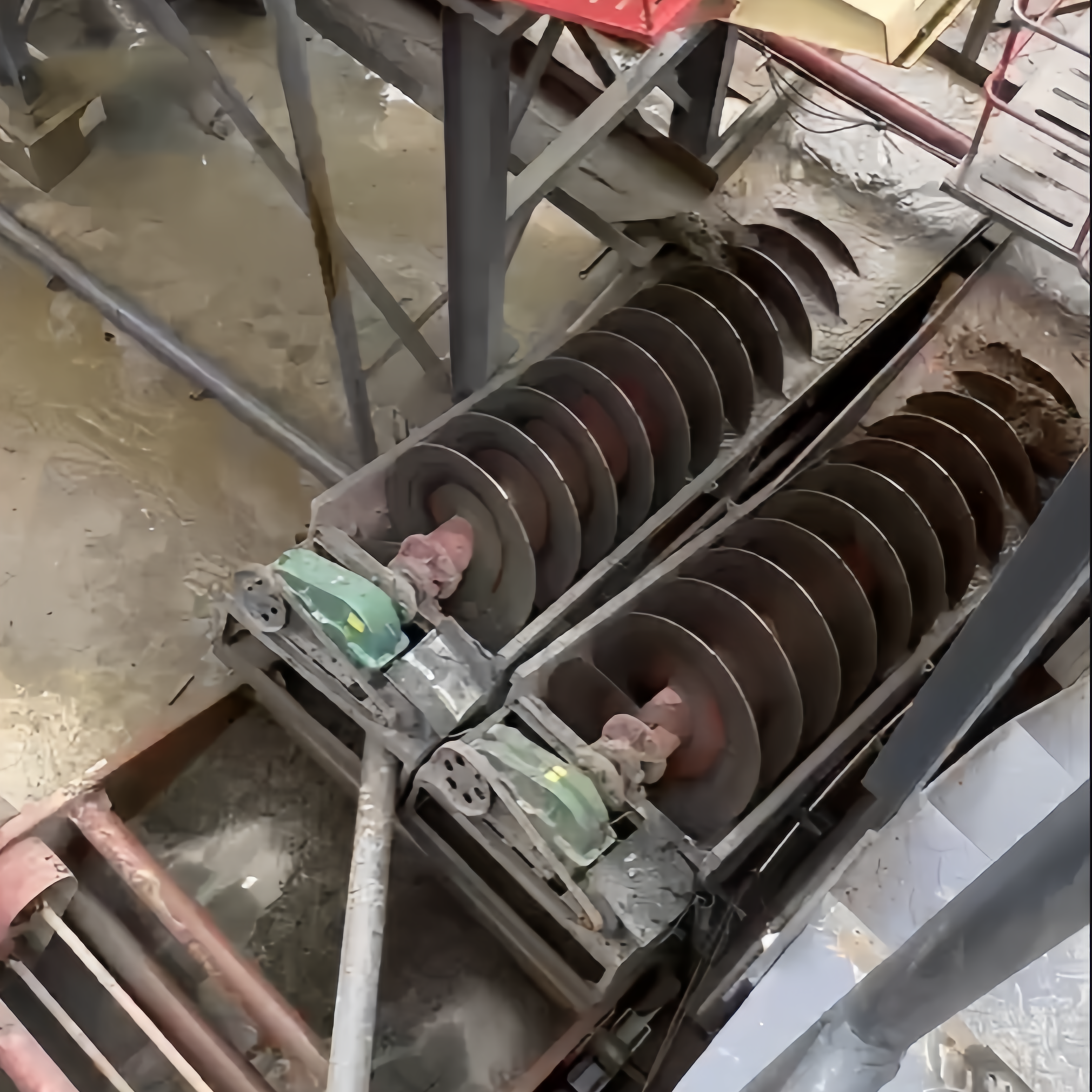

Spiral Sand Washing MachineThe synergistic effect of impeller tumbling and water flushing achieves deep cleaning of sand and gravel.

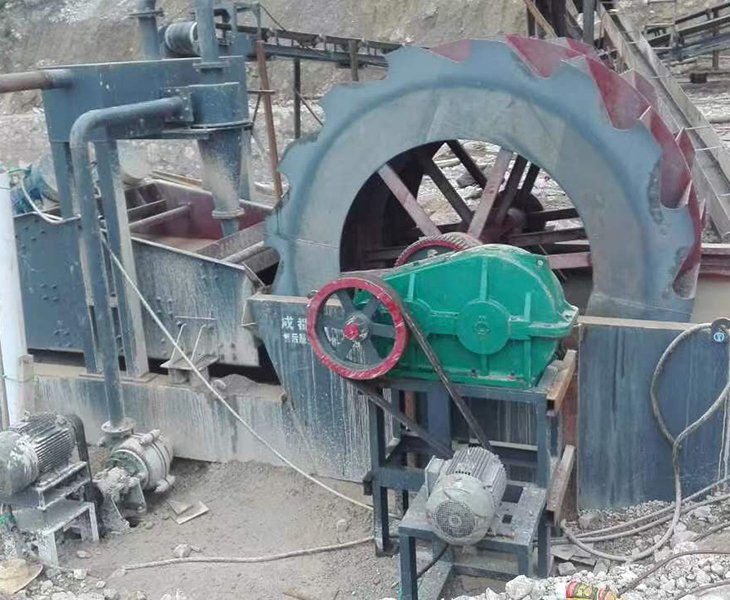

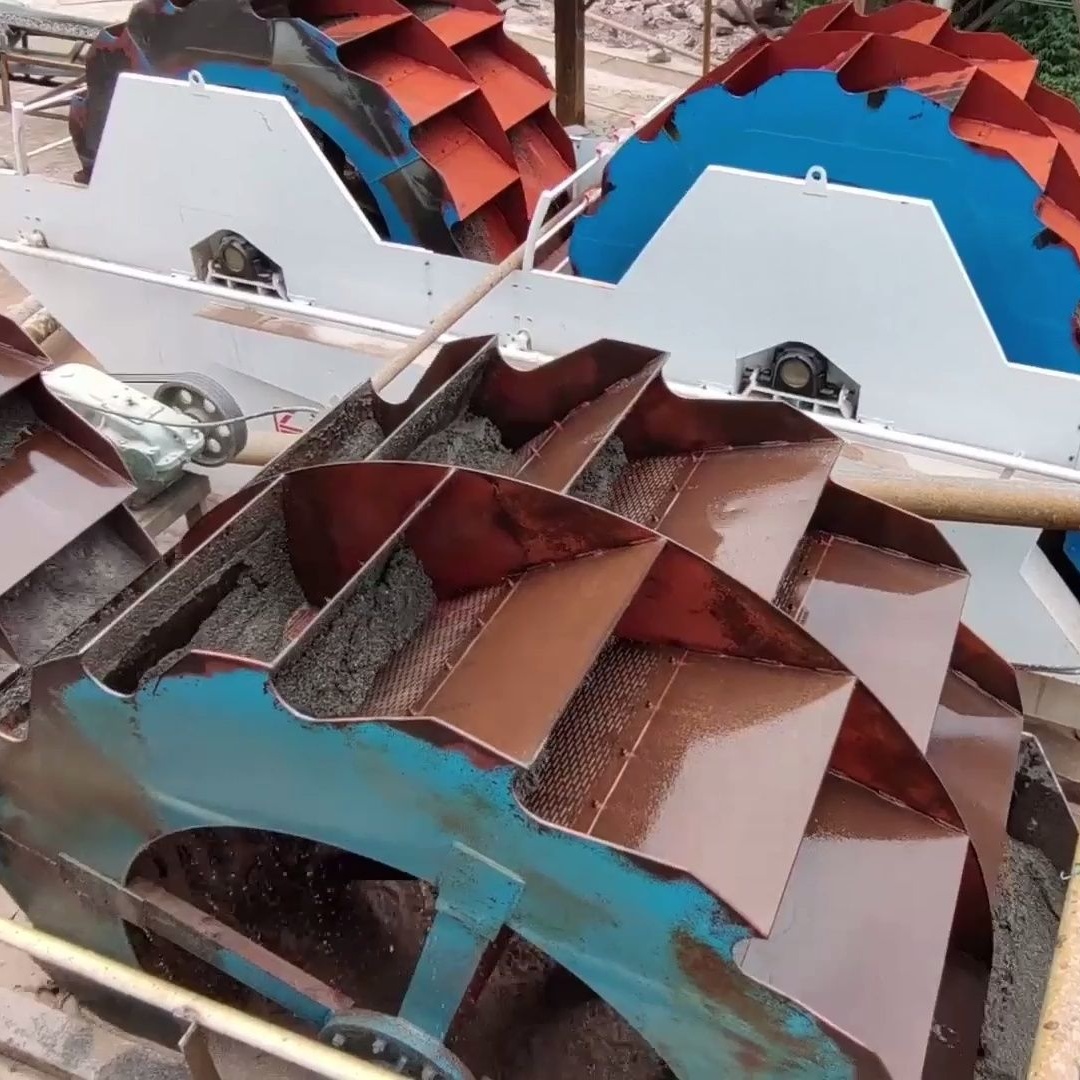

Wheel Sand Washing MachineThe spiral blades promote frictional cleaning of the material, combining cleaning, dehydration, and classification.

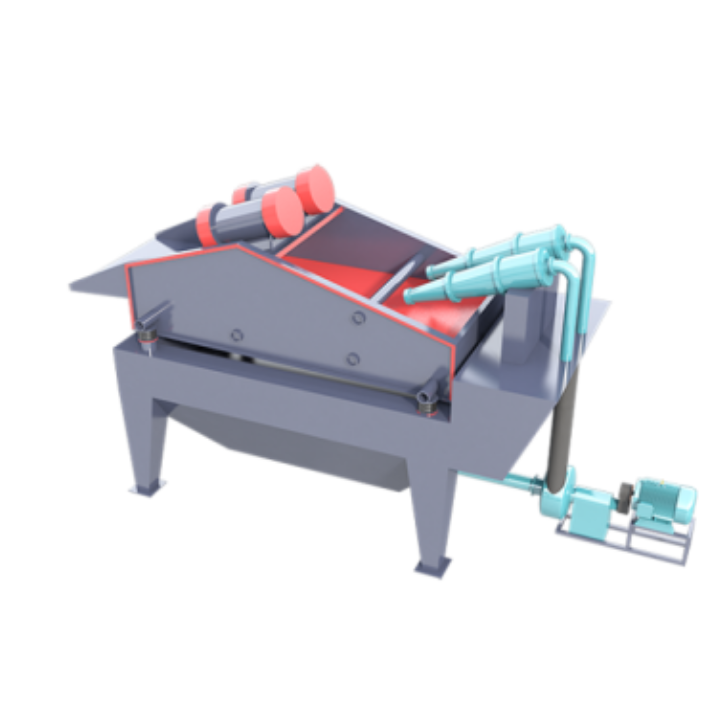

Integrated Tailings Recovery MachineIntegrated cyclone concentration and dehydration screening efficiently recover fine sand lost during sand-washing wastewater treatment.
Sand Washing Machine Advantages
The impeller/spiral structure and water flow quickly remove surface impurities, enhancing the cleanliness of the finished product.
There are corresponding models for medium and fine sand, high mud, coarse sand or site-limited scenes in this machine.
Some configurations have water circulation systems, and wastewater is reused after filtration to reduce resource consumption.
The sandreck sand washing machine reduces sand loss, and its screen intercepts fine sand, resulting in a high recovery rate.
The steel frame and wear-resistant parts ensure long-term operation, and the protective cover reduces the risk of failure.
Sandreck is a source manufacturer. There are no middlemen taking profits. Our machine’s price is the lowest price worldwide.
Two Types of Sand Washers to Choose
If your raw material is coarse sand with a high silt content, the Sandreck spiral sand washer is your best choice. Its long-tank design extends the wash duration and ensures a high level of cleanliness, making it ideal for large-scale production lines.
If you prioritise high-efficiency washing, the Sandreck wheel sand washing machine is the ideal option. Its impeller design effectively minimizes sand loss, making it suitable for processing medium-to-fine sand.
Closed-Loop Water Circulation System
Our sand washing machine features an integrated design that achieves a water recovery rate of up to 95%, reducing water consumption to just 0.5 tons per ton of sand. This saves over 120,000 tons of water annually and completely eliminates environmental risks.
Sand Washing Equipment Linkage Work
Pretreatment
If the mud content of materials is high, a spiral sand washer is used. If the mud content is low, a wheel sand washing machine is used.
The coarse sand (≥0.3 mm) produced in the pre-washing process is used as finished sand, and wastewater (containing fine sand ≤0.3 mm) is sent to the tailings recovery machine.
Recycling
The integrated tailings recovery machine is equipped with a hydrocyclone to separate fine sand, which is dewatered in a dewatering machine and then mixed with coarse sand to produce finished sand.
The purified water from the integrated tailings recovery machine is then fed back into the sand washing machine. Therefore, no wastewater is generated.
Adaptation differences

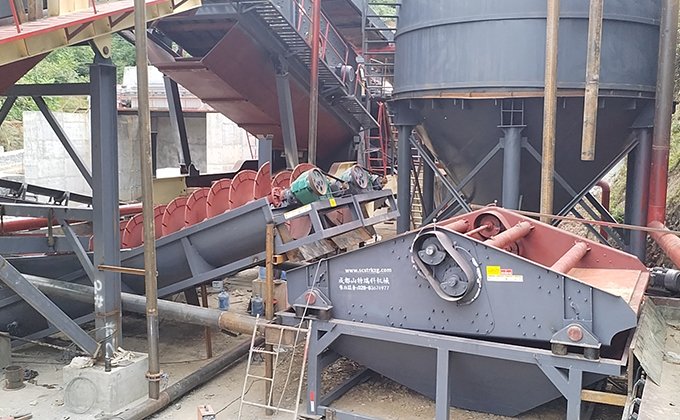

1) Spiral Sand Washing Machine + Integrated Tailings Recovery Machine:
Spiral sand washing machines result in a high loss of fine sand (5%-8%). A reclaimer can increase this recovery rate to over 98% and increase production by 10%-15%. This makes it suitable for coarse materials such as slag and weathered rock.

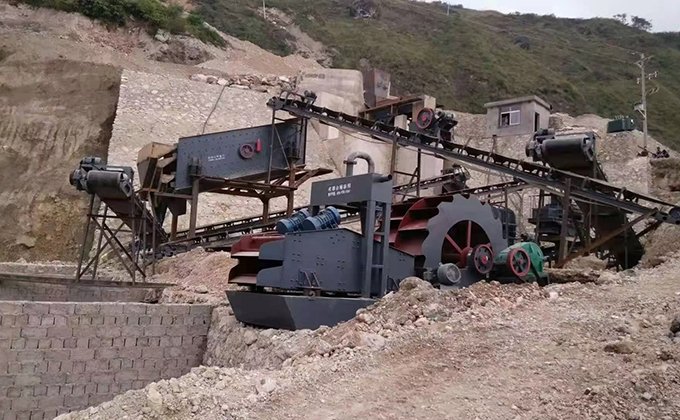

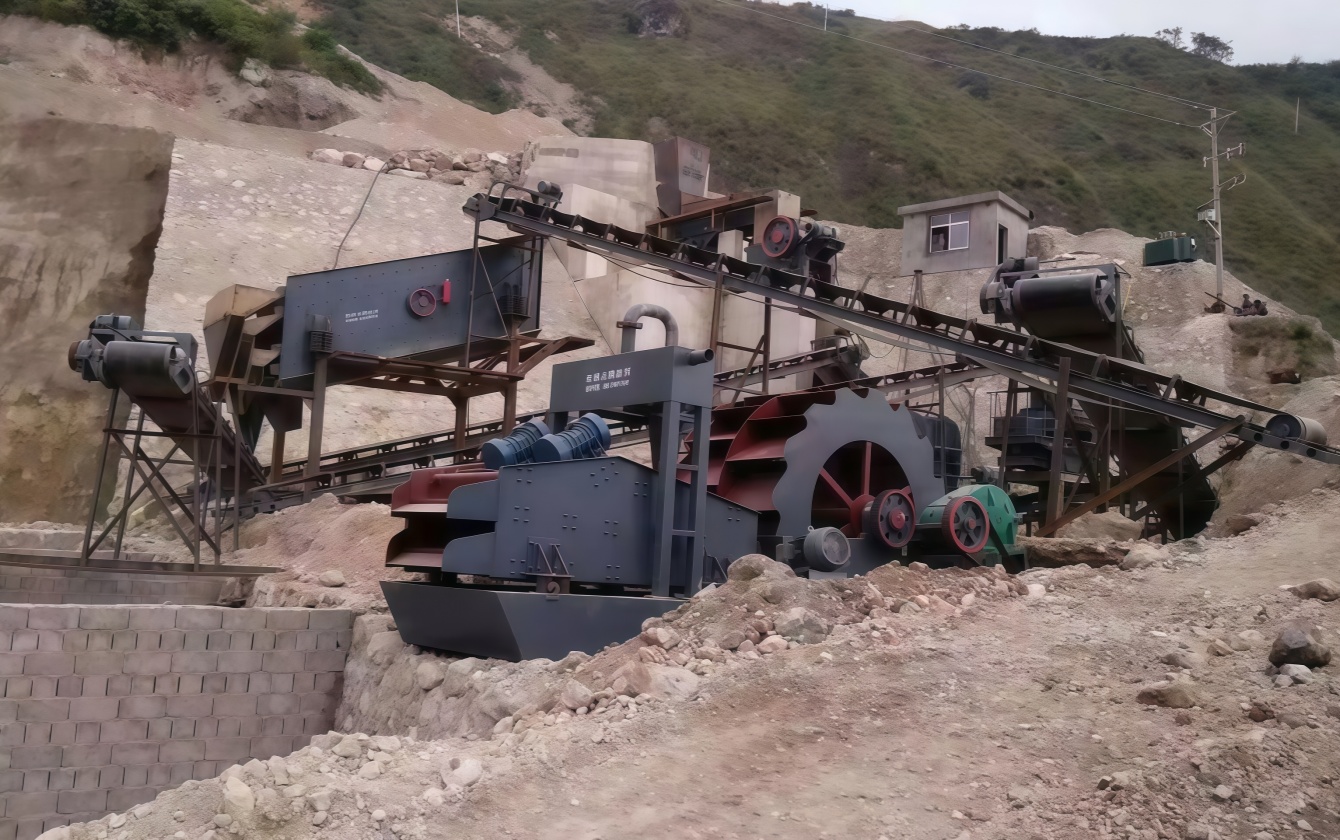

2) Wheel Sand Washing Machine + Integrated Tailings Recovery Machine:
The wheel sand washing machine itself results in low fine-sand loss (≤3%). The combined system primarily recovers trace amounts of fine sand and ensures wastewater recycling. This makes it suitable for concrete sand (where particle size is a high requirement) or for applications with stringent environmental requirements.
Customized Services for Sand Washer
Special sand washing machine configurations are determined by the characteristics of the raw materials (clay content, grain size, etc.)
We provide recommendations on the sand washing machine best suited to your production needs, taking into account technical, output, and economic factors.
Optimal layout and installation of the machines according to local.
Equipping your sand-washing installations with the most appropriate fine-sand recovery and water-circulation systems.
Technical Parameters
- Spiral Sand Washing Machine
- Wheel Sand Washing Machine
| Specifications | Spiral diameter (mm) | Effective length (mm) | Screw speed (r/min) | Output (t/h) | Matching motor (kw) | Number of spirals |
| LX1000 | 1000 | 6000 | 18 | 10-30 | 7.5 | 1 |
| LX1200 | 1200 | 6000 | 16 | 30-50 | 7.5-11 | 1 |
| LX1500 | 1500 | 6000 | 16 | 50-80 | 11-15 | 1 |
| 2LX1200 | 1200 | 6000 | 14 | 70-120 | 11×2 | 2 |
| 2LX1500 | 1500 | 6000 | 12 | 80-150 | 15×2 | 2 |
| Model | Impeller Specifications (mm) | Feed Size (mm) | Processing Capacity (t/h) | Speed (r/min) | Power (kw) | Motor Model | Dimensions (mm) |
| XSD2610 | Φ2600*1000 | 10 | 20-60 | 1.178 | 7.5 | Y160L-8/7.5 | 3255x1982x2690 |
| XSD3016 | Φ3000*1600 | 10 | 70-120 | 1.179 | 8-15 | Y200L-8/15 | 3845x3000x3080 |
Testimonials
Sandreck’s sand washing machine has revolutionised our concrete production! The machine thoroughly cleans sand, removing all silt and clay, which has improved our mix quality. Its water-recycling system reduces our water use by 30%, lowering costs and aligning with our sustainability goals. The low maintenance and high reliability make it a perfect fit for our busy site. Highly recommend Sandreck for any construction business!
Robert HayesConstruction Site Manager
Sandreck is a sand washing machine manufacturer, integrating manufacturing, production, and supply under one roof. We have a professional after-sales team and provide original parts; maintenance costs are very low.
Sandreck have a dedicated production team. The delivery time of our sand washer is generally made within 30 days after the contract is signed.
You can send us a message on WhatsApp (+86 13666293477), leave your contact details on our website, or click here. Later, our online customer service will contact you and offer the price of our sand washing machine.
