HPT Cone Crusher
Sandreck HPT Cone Crusher is used for secondary and tertiary crushing of hard materials.
- Feed size: ≤300mm
- Motor power: 90-630kW
- Processing capacity: 70-600 t/h
Your Expert HPT Cone Crusher Supplier In China.
HPT Cone Crusher produced by Sandreck is an ideal stone crusher for sand and gravel aggregate production. It can meet the requirements of coarse and fine crushing by simply replacing the corresponding liner.
Sandreck HPT Cone Crusher uses a hydraulic system to adjust the discharge port to achieve overload protection. The hydraulic and lubrication systems ensure stable operation through dual safety control.
Sandreck is a professional Cone Crusher manufacturer with a large factory scale and business in more than 100 countries and regions around the world. Welcome to consult.
HPT Cone Crusher Advantages
HPT Cone Crusher adopt an integrated hydraulic lubrication system to ensure equipment safety.
Equipped with multiple crushing cavities, it can realize the conversion of coarse and fine crushing of materials.
PLC one-button control system can realize remote control, one-button start and one-button shutdown.
The centralized control system has functions such as pressure maintenance and multi-mode operation.
Independent oil station, with large energy supply, improves the production of final material.
Sandreck can provide you with a full set of product supply services to ensure worry-free operation of the equipment.
Why Choose Sandreck HPT Cone Crusher
Sandreck has more than 20 years of experience in Cone Crusher manufacturing and has an experienced technical team to provide you with professional technical consultation and after-sales service at any time.
How the Sandreck HPT Cone Crusher works？

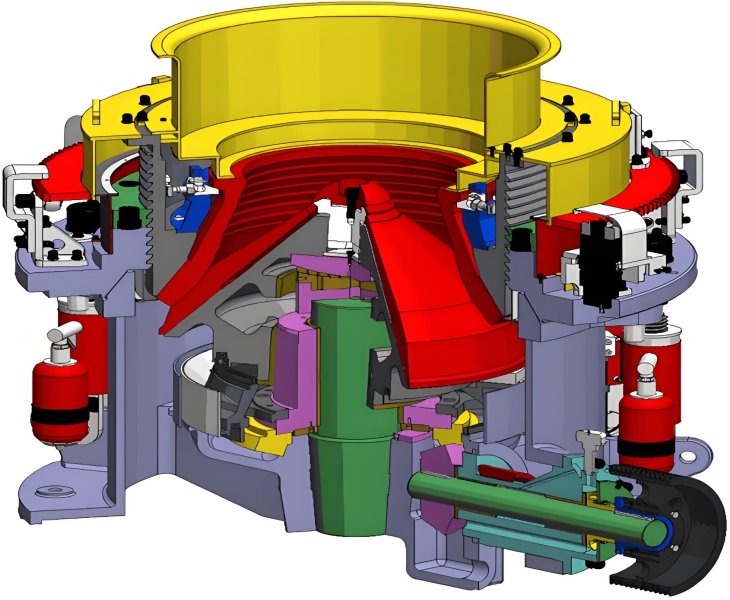

Sandreck Cone Crusher is mainly composed of seven parts, namely, frame, support sleeve, adjustment ring, dynamic cone, eccentric sleeve, transmission and insurance device. The main shaft is fixed, the motor drives the transmission shaft to rotate, the transmission shaft drives the eccentric sleeve to rotate around the main shaft through the gears, and then the eccentric sleeve drives the dynamic cone to do the eccentric circumferential swing, thus realising the continuous crushing of the stone blocks.
Company Advantage
Sandreck is a HPT Cone Crusher Manufacturing Company integrating R&D and design, production and sales. It possesses over 100 sets of machining equipment of various specifications, including CNC vertical lathes, deep hole drills, laser cutting machines, planers, CNC lathes, CNC boring and milling machines, etc.
We are a HPT Cone Crusher corporation. Our crushing equipments are used by customers all over the world because we will tailor professional solutions and mature supporting design plans for you based on your needs, creating the greatest value for you.
Golden Service
For your HPT Cone Crusher, we stand by your side 24 hours a day, providing round-the-clock protection for your choices!
We will arrange engineers to conduct actual surveys and scheme designs at your construction site, and provide customized product services according to your needs.
Our production process is clear and transparent, strictly controlled by professional quality inspection, with accurate inventory preparation and timely delivery.
We will dispatch engineers go to the site to provide technical training on equipment installation and commissioning, operation, maintenance and other aspects.
24-hour customer service response mechanism, providing you with technical services throughout the entire life cycle.

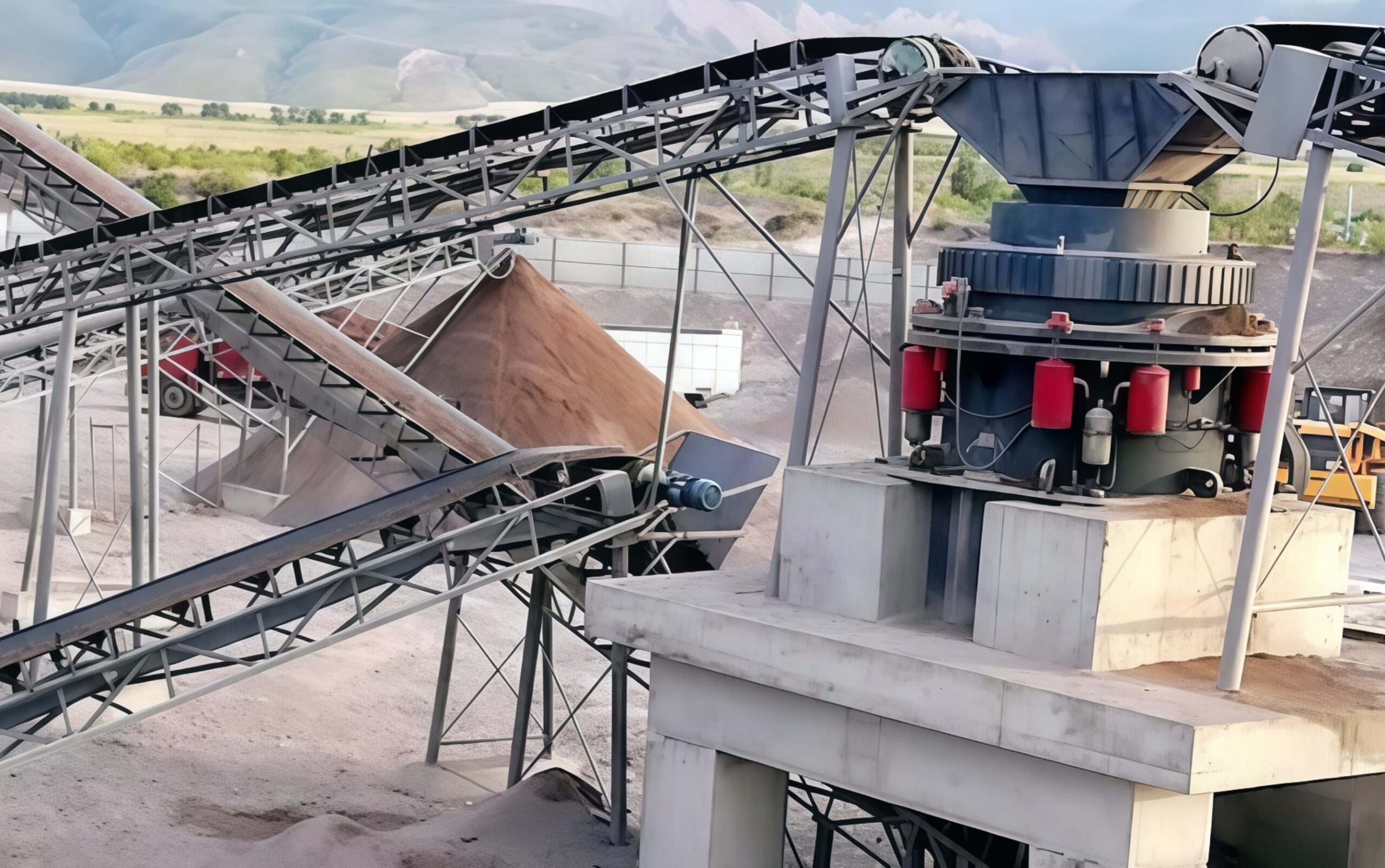

HPT Cone Crusher Cases
Sandreck is a well-known Chinese integrated supplier of crushed stone equipment and solutions, and has provided services for over a thousand sand and gravel processing plants.
Processing material: Granite
Capacity: 300 t/h
Finished size: ＜31.5mm
Processing material: Limestone
Capacity: 300 t/h
Finished size: ＜31.5mm
Technical Parameters
- HPT Cone Crusher
| Mode | Cavity Type | Feeding Port（mm） | Discharge Port（mm） | Yield（t/h） | Standard Installed Power（kw） | Maximum Installed Power（kw） | Dimensions（mm） |
| HPT100 | C1（Super thick） | 140 | 19 | 75-140 | 90 | 90 | 1705*1510*1583 |
| C2（thick） | 100 | 13 | 60-110 | ||||
| M（middle） | 70 | 9 | 52-100 | ||||
| F1（thin） | 50 | 9 | 50-95 | ||||
| F2（Ultra fine） | 20 | 6 | 45-90 | ||||
| HPT200 | C2（thick） | 185 | 19 | 145-250 | 160 | 160 | 2135*1750*1927 |
| M（middle） | 125 | 16 | 135-235 | ||||
| F1（thin） | 95 | 13 | 115-220 | ||||
| F2（Ultra fine） | 75 | 10 | 90-190 | ||||
| HPT300 | C1（Super thick） | 230 | 25 | 220-440 | 220 | 250 | 2725*2110*2871 |
| C2（thick） | 210 | 19 | 190-380 | ||||
| M（middle） | 150 | 16 | 175-320 | ||||
| F1（thin） | 105 | 13 | 145-280 | ||||
| F2（Ultra fine） | 80 | 10 | 110-240 | ||||
| HPT400 | C1（Super thick） | 295 | 30 | 300-630 | 315 | 315 | 2775*2370*2295 |
| C2（thick） | 251 | 25 | 285-560 | ||||
| M（middle） | 196 | 20 | 250-490 | ||||
| F1（thin） | 110 | 13 | 180-345 | ||||
| F2（Ultra fine） | 90 | 10 | 135-320 | ||||
| HPT500 | C1（Super thick） | 330 | 38 | 425-790 | 400 | 400 | 2800*3480*4050 |
| C2（thick） | 290 | 30 | 370-700 | ||||
| M（middle） | 210 | 22 | 330-605 | ||||
| F1（thin） | 135 | 16 | 270-535 | ||||
| F2（Ultra fine） | 95 | 13 | 220-430 | ||||
| HPT800 | C1（Super thick） | 350 | 38 | 570-1200 | 630 | 630 | 3970*3345*4235 |
| C2（thick） | 299 | 32 | 520-1050 | ||||
| M（middle） | 265 | 25 | 475-950 | ||||
| F1（thin） | 220 | 16 | 370-800 | ||||
| F2（Ultra fine） | 150 | 13 | 310-600 |
Testimonials
The HPT Cone Crusher from Sandreck have advanced hydraulic system ensures consistent output even under heavy loads, while the energy-efficient design cut our power consumption by nearly 18%. Maintenance is straightforward, and the durability has exceeded expectations—zero unplanned downtime in 12 months. A must-have for modern mining.
TheoProject ManagerAfter switching to Sandreck’s HPT Cone Crusher, our productivity surged by 22% within the first quarter. The automated controls and smart diagnostics minimize human error and maximize uptime. What truly stands out is Sandreck’s customer support team, who provided seamless integration guidance. This investment has paid off tenfold in efficiency and cost savings.
EmilyHead of Procurement
Suitable for crushing various materials with medium hardness or above. Such as iron ore, non-ferrous metals, granite, limestone, quartz, sandstone, river pebbles and other ores and rocks.
Regularly check the lubrication system and wear of wearing parts to ensure sufficient oil and replace worn parts in time.
The main components include fixed cone, moving cone, eccentric sleeve, main shaft, hydraulic cylinder, hydraulic motor, large and small bevel gears and hydraulic lubrication system.
We are a Chinese crusher source factory, each unit is ex-factory price, you can leave a message via WhatsApp (+8613666293477), we will contact you as soon as possible.
