VSI6X Sand Crusher for Sale
The VSI6X Crusher is a newly developed high-efficiency stone-crushing and sand-making machine from our company.
- Feed size: Less than 60mm
- Motor power: 75-500 kW
- Capacity: 60-520 T/H

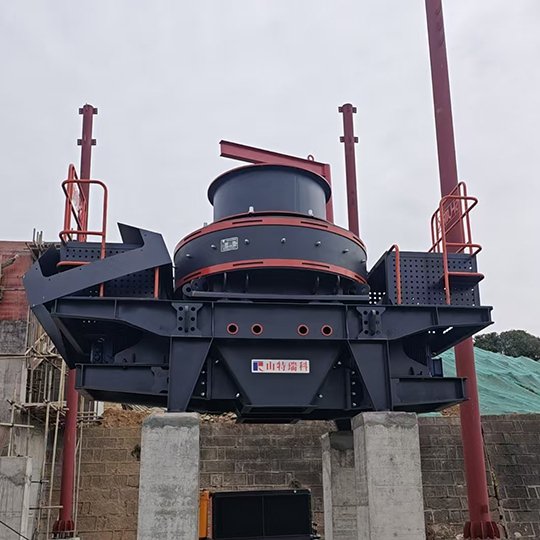

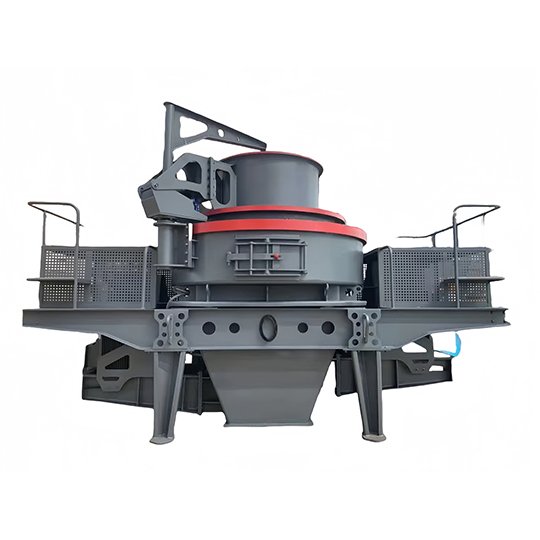

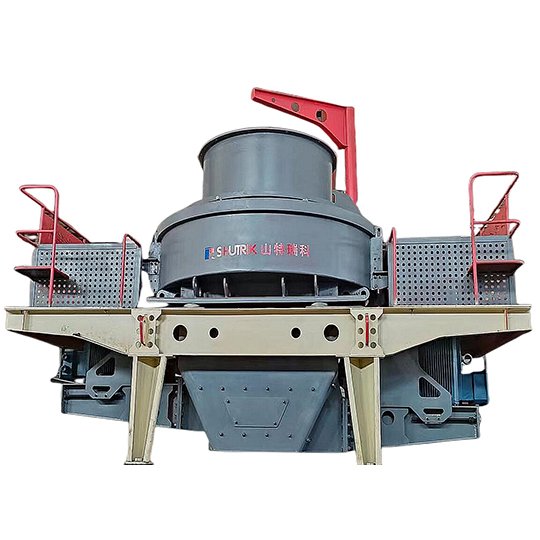

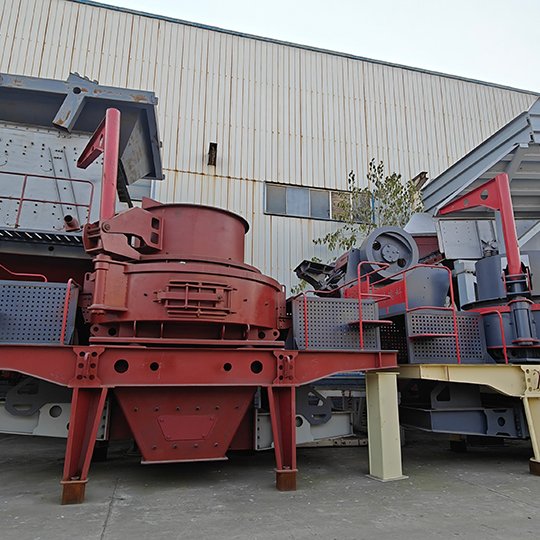

High-efficiency VSI6X Sand Making Machine
The VSI6X sand crusher utilizes a high-speed, enclosed impeller to accelerate material movement. Its feed inlet and discharge opening can be customized based on specific operating conditions. The equipment supports two operating modes—”rock-on-iron” and “rock-on-rock”—and meets various processing requirements, including fine crushing, superfine crushing, sand making, and stone shaping.
The VSI6X crusher is a new, high-efficiency sand-making machine launched by Sandreck to meet the global market’s demand for high-quality sand. It features energy efficiency, environmental friendliness, low manufacturing costs, and an affordable price.
VSI6X Crushers Advantages
The four-port impeller design improves the crushing efficiency by 20% compared to the traditional one.
The use of high-quality materials prolongs the service life of the hammer head and wear-resistant parts by 30%.
The finished-product particle size and gradation are better, meeting the requirements for high-quality processing.
By absorbing advanced technologies at home and abroad, it is more efficient than traditional sand-making machines.
Low operating and maintenance costs make equipment operation safer and more reliable.
VSI6X crusher adopts a closed production structure and meets environmental protection standards.
VSI6X Sand Crusher Application
The Sandreck VSI6X crusher is suitable for processing river pebbles, quartzite, diabase, cement clinker, and other hard, brittle materials. Its applications span various sectors, including concrete mixing, ore processing, water conservancy and hydropower, highway and railway construction, and the chemical industry.
More About Our Company
- Technical Parameters
| Model | Max Input Size | Capacity | Spindle Speed (r/min) | Power (kw) | Overall Dimension (mm) | ||
| Sand Making (mm) | Shaping (mm) | Sand Making (mm) | Shaping (mm) | ||||
| VSI68015 | =30 | =40 | 109-117 | 131-210 | 1300-1700 | 75*2 | 4100*2275*3353 |
| VSI69026 | =35 | =45 | 167-179 | 200-323 | 1200-1500 | 132*2 | 4640*2380*3500 |
| VSI61040 | =40 | =50 | 264-283 | 317-515 | 1100-1400 | 200*2 | 4880*2560*3725 |
| VSI61150 | =45 | =55 | 344-368 | 413-663 | 1000-1300 | 250*2 | 5500*2750*3950 |
| VSI61263 | =50 | =60 | 454-486 | 545-872 | 900-1200 | 315*2 | 5700*2980*4190 |
| VSI61380 | ≤50 | ≤60 | 601-643 | 721-1150 | 800-1100 | 400*2 | 7900*3260*4183 |
| VSI613100 | ≤50 | ≤60 | 738-839 | 940-1510 | 800-1100 | 500*2 | 7900*3260*4183 |
When the VSI6X crusher is operating under load, the feed particle size must not exceed the equipment’s allowable size.

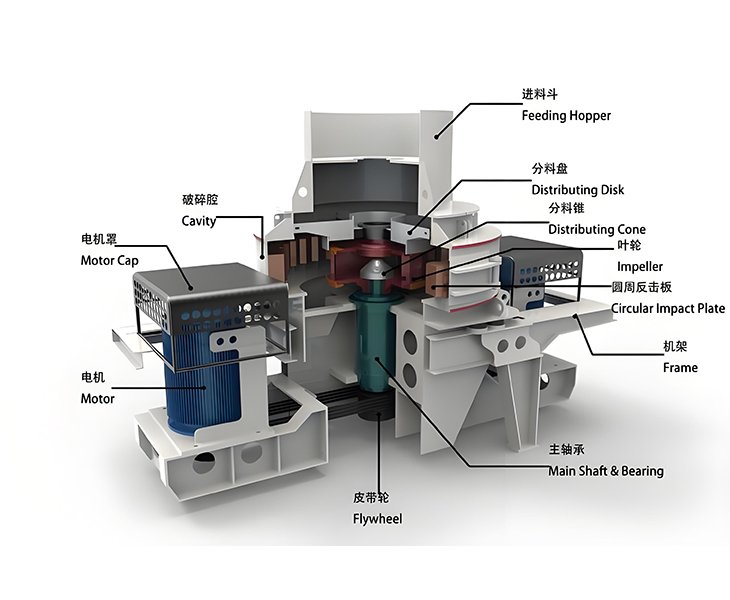

Bearing cylinder frame, peripheral guard plate, pulley, rotor, motor, hopper, rotating shaft, motor seat, etc.
We are the sand making machine manufacturer in China, and each one is at ex-factory price. You can leave a message through WhatsApp (+8613666293477), and we will contact you as soon as possible.
