C Series Impact Crusher
C Series Impact Crusher is an upgraded product of PF Impact Crusher, used for secondary and tertiary crushing of stone.
- Feed size: 500-1000 MM
- Motor power: 90-440 KW
- Processing capacity: 60-700 T/H
Your Expert C Series Impact Crusher Supplier In China.

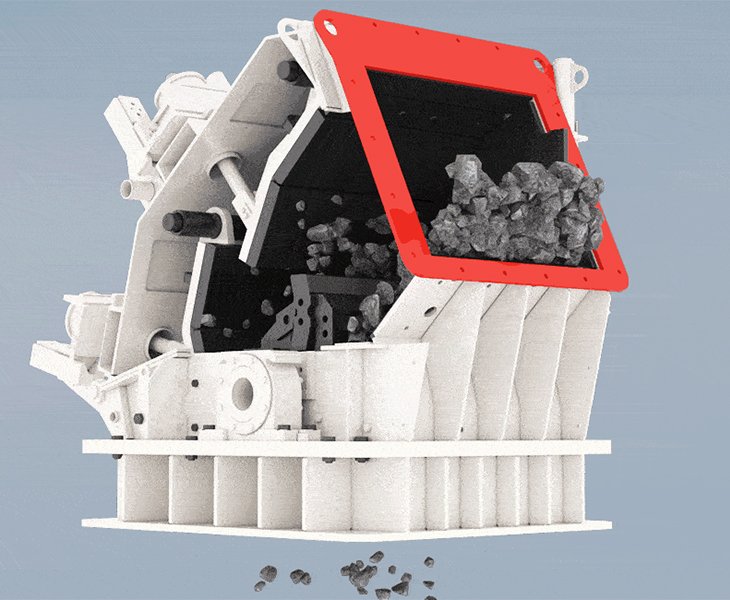

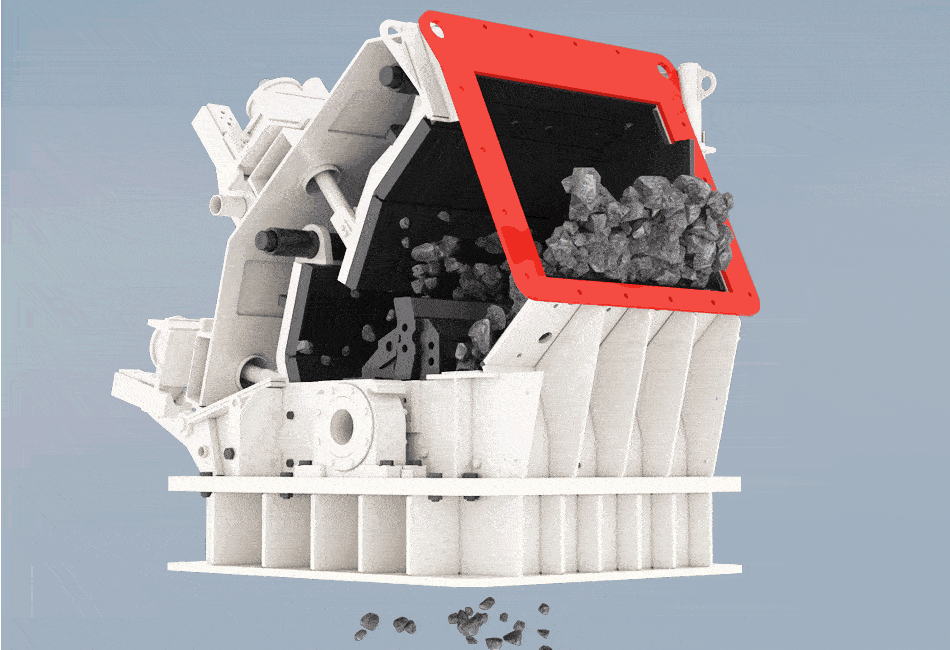

Sandreck C Series Impact Crusher is an energy-saving crushing equipment. It mainly uses the motor to drive the rotor to move, and the plate hammer impacts the material to make the material of the required particle size. It has the characteristics of large crushing ratio, good particle shape, and uniform particle size.
The C Series Impact Crusher produced by Sandreck has three-stage crushing and shaping capabilities, which is a good choice for your engineering project. We are a professional manufacturer of Impact Crushers with a large factory scale and business in more than 100 countries and regions in the world. Welcome to consult.
C Series Impact Crusher Advantages
We are a company integrating manufacturing and marketing. All of our prices are the factory prices.
Use high wear-resistant steel plate to reduce equipment maintenance costs.
Key components are optimized, and the crushing efficiency and crushing ratio are increased by at least 15%.
C Series Impact Crusher can produce finished products with ideal cubic particle shape.
Adopts a multifunctional hydraulic system with high adjustment accuracy.
Sandreck factory ensures delivery within 25 working days after signing the contract.
Application Scope Of C Series Impact Crusher
C Series Impact Crusher can crush ore, limestone, slag, charcoal, coal, etc. with a compressive strength not exceeding 350MPa. It is widely used in hydropower, highways, construction waste treatment, artificial construction aggregate processing and other industries.
Structural Components of Sandreck C Series Impact Crusher
Sandreck C Series Impact Crusher mainly consists of regulation device, lining plate,rear frame, impact rear, impact plate, front frame, plate hammer, rotor, main shaft and other components, which work together to make the C Series Impact Crusher able to complete the crushing task efficiently.
Company Advantage
Sandreck is a C Series Impact Crusher Manufacturing Company integrating R&D and design, production and sales. It possesses over 100 sets of machining equipment of various specifications, including CNC vertical lathes, deep hole drills, laser cutting machines, planers, CNC lathes, CNC boring and milling machines, etc.
We are a C Series Impact Crusher corporation. Our crushing equipments are used by customers all over the world because we will tailor professional solutions and mature supporting design plans for you based on your needs, creating the greatest value for you.
Golden Service
For your C Series Impact Crusher, we stand by your side 24 hours a day, providing round-the-clock protection for your choices!
We will arrange engineers to conduct actual surveys and scheme designs at your construction site, and provide customized product services according to your needs.
Our production process is clear and transparent, strictly controlled by professional quality inspection, with accurate inventory preparation and timely delivery.
We will dispatch engineers go to the site to provide technical training on equipment installation and commissioning, operation, maintenance and other aspects.
24-hour customer service response mechanism, providing you with technical services throughout the entire life cycle.
C Series Impact Crusher Cases
Sandreck is a well-known Chinese integrated supplier of crushed stone equipment and solutions, and has provided services for over a thousand sand and gravel processing plants.

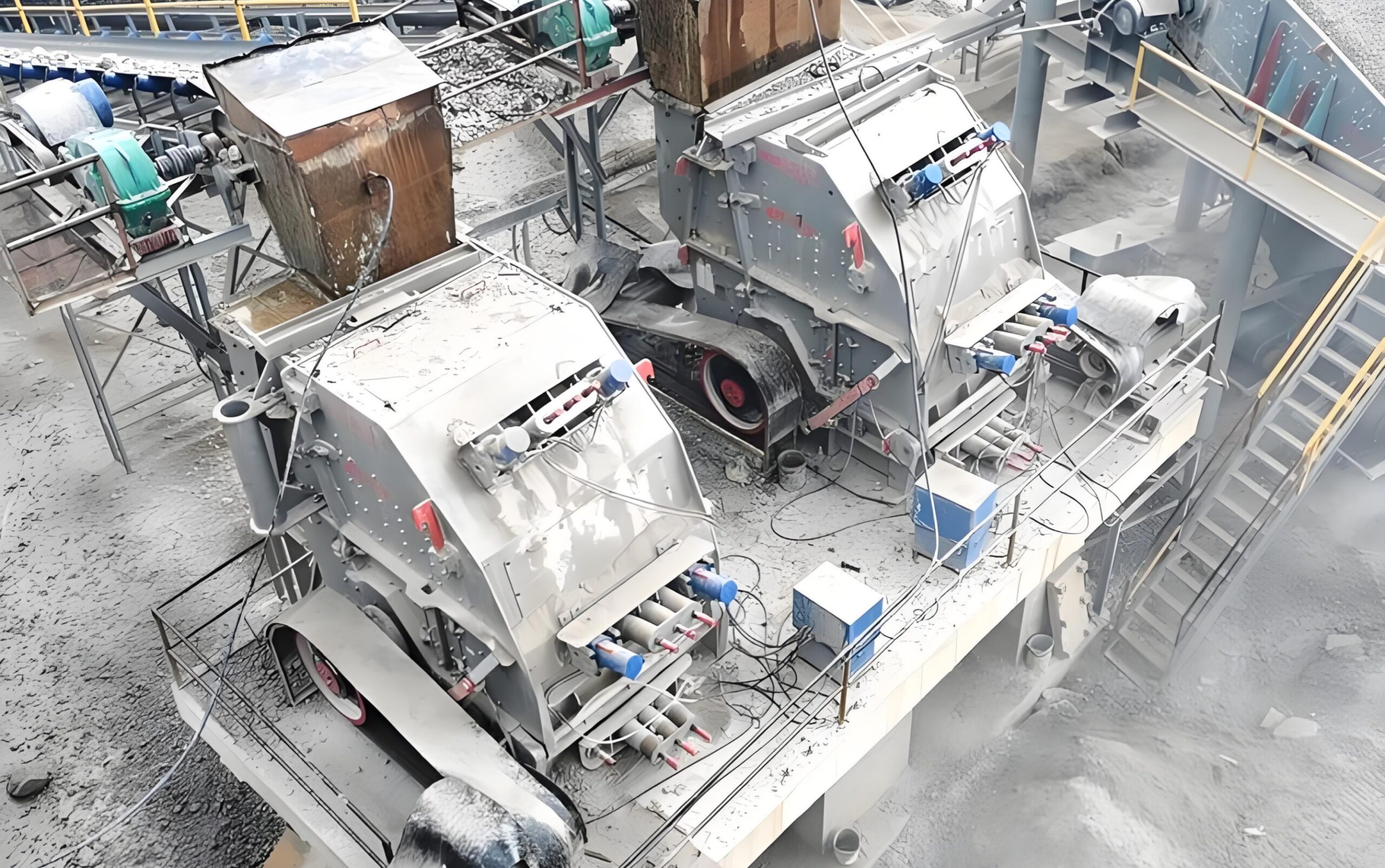

Processing material: Limestone
Capacity: 200 t/h
Finished size: ＜50mm
Major equipment: C1421 Impact Crusher

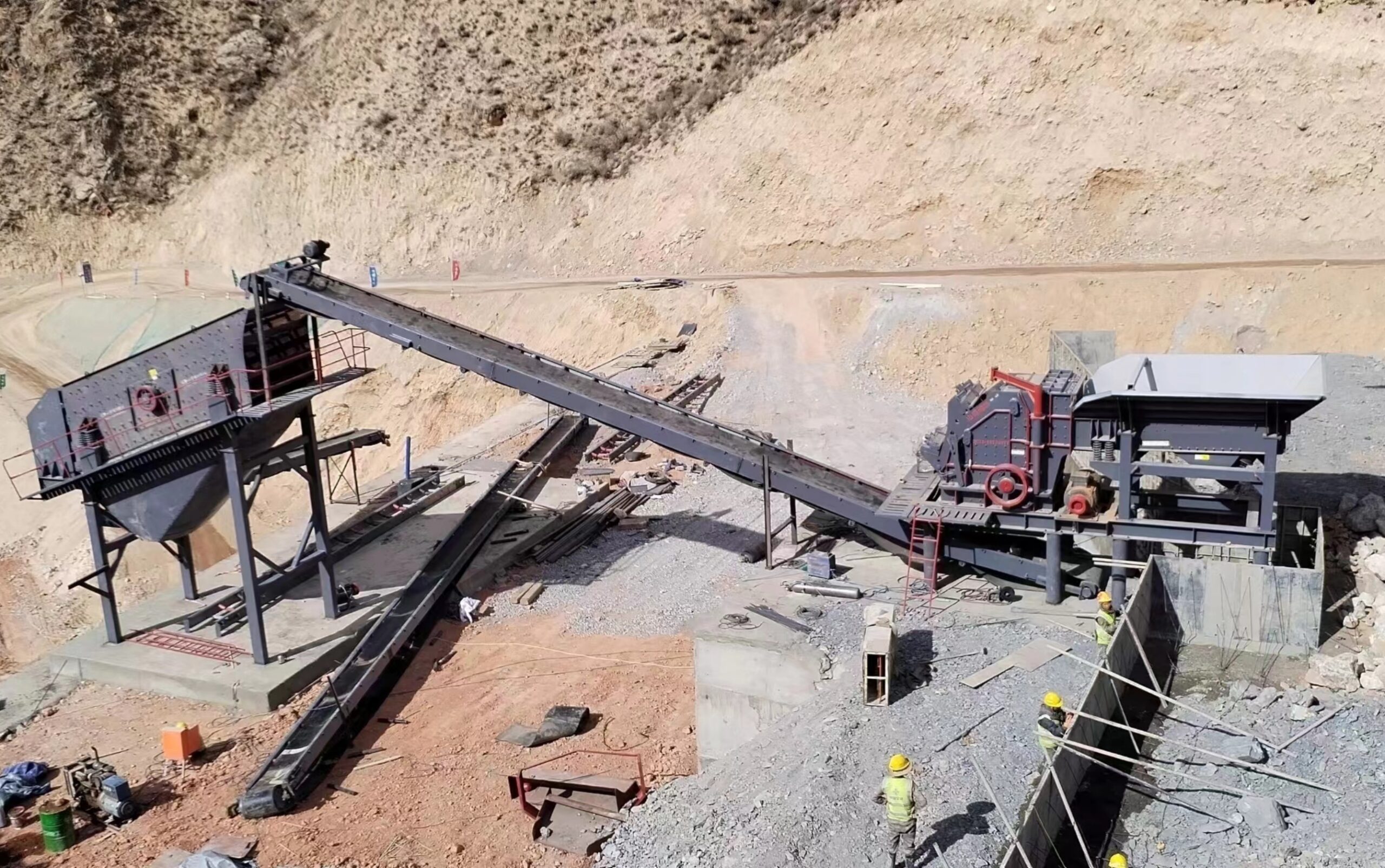

Processing material: Cobblestone
Capacity: 400-500 t/h
Finished size: ＜50mm
Major equipment: C1411 Impact Crusher
Technical Parameters
- C Series Impact Crusher
| Model | Feed Port Size (mm) | Maximum Feed Opening Size (mm) | Processing Capacity (t/h) | Power (kw) | Weight (kg) |
| C1411 | 820×980 | 600 | 100-200 | 90-200 | 12000 |
| C1412 | 430×980 | 300 | 60-130 | 90-200 | 12000 |
| C1421 | 960×1360 | 800 | 200-400 | 180-250 | 17000 |
| C1422 | 450×1360 | 350 | 80-250 | 180-250 | 17000 |
| C1431 | 1050×1700 | 800 | 300-500 | 200-400 | 24000 |
| C1432 | 600×1700 | 350 | 120-300 | 200-400 | 24000 |
| C1441 | 1350×1950 | 1000 | 400-700 | 220-440 | 29600 |
| C1442 | 650×1950 | 350 | 150-400 | 220-440 | 29600 |
Testimonials
The C Series Impact Crusher from Sandreck has revolutionized our operations with its unmatched efficiency and durability. Its advanced crushing mechanism handles high-capacity workloads effortlessly, reducing downtime significantly. The precision engineering ensures consistent output quality, making it a worthwhile investment for any heavy-duty application. Highly recommended!
David HarperOperations ManagerSandreck’s C Series Impact Crusher delivers exceptional performance in challenging environments. Its user-friendly design simplifies maintenance, and the energy-efficient operation cuts costs substantially. The robust build minimizes wear and tear, ensuring long-term reliability. Our productivity has soared since integrating this machine into our workflow.
KaiProcurement Engineer
Ensure that the equipment is fully lubricated, fasteners are tightened, and debris is cleaned up to ensure safe startup.
Rotor, plate hammer, impact plate, tie rod, side guard plate, square steel, compaction block, etc.
Sandreck is a source factory of crushers in China. Each unit is priced at the factory price. You can leave a message via WhatsApp (+8613666293477) and we will contact you as soon as possible.
