VSI5X Crusher
VSI5X Crusher is a new type of sand making equipment independently developed by our company based on summarizing the experience of sand making machine manufacturing at home and abroad.
- Feed particle size: ≤50MM
- Motor power: 150-440 KW
- Output: 60-400 T/H
What Is VSI5X Crusher?
VSI5X Crusher is a kind of mechanical sand making equipment widely used in the market. Its principle is to integrate multiple crushing methods. It not only retains the high-quality features of the original VSI Sand Making Machine, but also updates and upgrades on its basis. It is a good choice for your sand and gravel production project.
Sandreck VSI5X Crusher mainly has three functions: crushing, shaping, and sand making. It is widely used in crushing and sand making in various industries. The sand produced is of high quality, good gradation, and stable output. It is widely used in mining, metallurgy, building materials and other industries.
VSI5X Crusher Advantages
The final product has low powder content, optimized particle size and gradation.
The deep cavity shape is energy-saving, allowing the rotor to handle more materials, improving the efficiency.
The self-circulation system is adopted, and the pollution emission is low.
VSI5X Crusher adopts a semi-automatic hydraulic system to save labor costs.
The guard plate can be adjusted up and down, which is beneficial to material utilization and service life.
As a large manufacturer in China, we guarantee that the equipment is sold at the most favorable price.
VSI5X Crusher Has A Unique Design

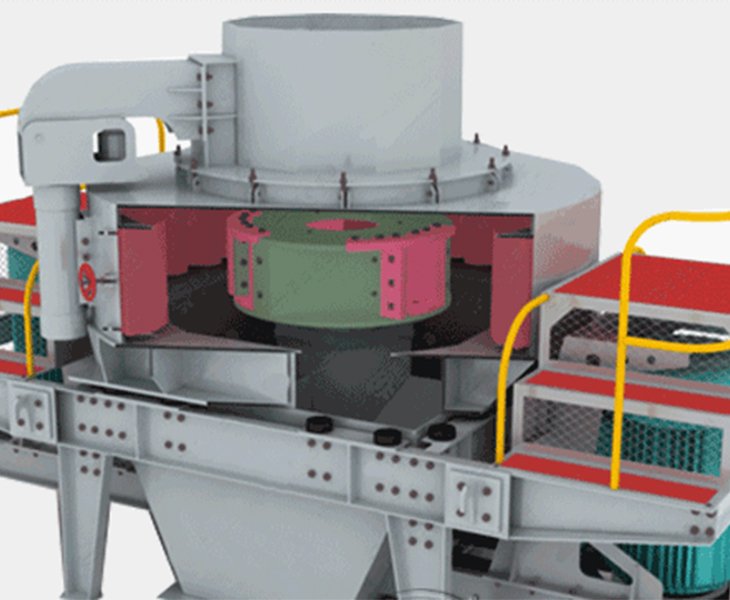

Sandreck VSI5X Crusher adopts a four-port impeller, which increases the production efficiency by more than 20% compared with the traditional three-port impeller.
More About Our Company
- Technical Parameters
| Model | Processing Power | Optimal Feed Size | Speed（r/min） | Dual Motor Power (kw) | Weight (t) | Power Supply | Dimensions | ||
| Falling And Center Feed (mm) | Full Center Feed (mm) | Soft Material (mm) | Hard Material (mm) | ||||||
| 5X7615 | 150-280 | 70-140 | 35 | 30 | 1700-1900 | 150 | 10 | 380v，50hz | 4100*2322*2459 |
| 5X8522 | 240-380 | 120-200 | 40 | 35 | 1500-1700 | 220 | 12.5 | 4500*2478*2658 | |
| 5X9532 | 350-540 | 180-280 | 45 | 40 | 1300-1510 | 320 | 14.5 | 4800*2571*2893 | |
| 5X1145 | 500-640 | 250-360 | 50 | 45 | 1100-1310 | 440 | 19 | 5500*2799*3320 | |
| Thin Oil Lubrication Station | Dual Oil Pump Motor Power | Security Protection | Fuel Tank Heating Power | Dimensions | |||||
| 2*0.25kw | Dual oil pumps complement each other to ensure oil supply; automatic shutdown when there is no oil flow; air cooling; motor heating start in winter | 2kw | 765*885*1160 | ||||||
Ensure that the equipment is fed evenly and the equipment is regularly maintained to prevent wear or rust.
The hammer head and liner are generally replaced every 500-800 hours, and the impeller is generally replaced every 1400 hours.
Sandreck is a Chinese VSI5X Crusher manufacturer. You can contact us via WhatsApp (+8613666293477)
