Mineral Shaking Table for Sale
Sandreck’s gravity shaking table is widely used to separate various metal and non-metal materials, especially for gravity separation of fine-grained materials.
- Improving coal quality and efficiency
- Recovering pyrite from coal gangue
- Metal ore separation
Stable Shaking Table in Mineral Processing

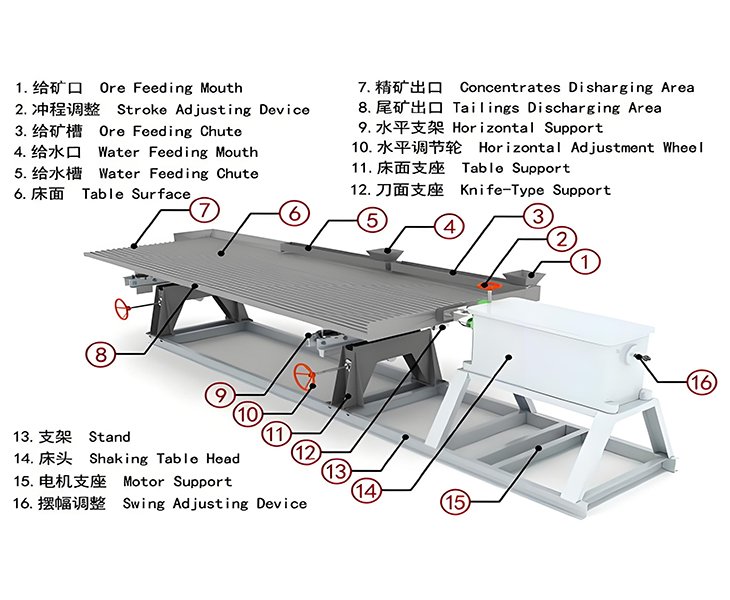

Sandreck utilizes the synergistic effect of asymmetric reciprocating motion and cross-flowing water to precisely separate mineral particles of varying specific gravities. Our shaking table features a cam-lever-slider mechanism, allowing the stroke length to be adjusted simply by changing the slider’s position.
Sandreck Shaking Table Advantages
The shaking table’s enrichment ratio is up to 100:1, enabling the simultaneous production of the final concentrate and tailings.
Adjustable stroke frequency can accommodate minerals of different particle sizes, increasing processing capacity by 40%.
No chemical agents are required throughout the process; energy consumption is reduced by 65% compared with traditional equipment.
The material recovery rate has been increased to 98.5%, and the fluctuation in the concentrate grade has been controlled within ±0.3%.
The modular design shortens the maintenance time by 70%, and the life of key components is extended to 30,000 hours.
Source manufacturers and suppliers, factory-saleable equipment are all at the lowest factory price, low cost, and high efficiency.
Mineral Shaking Table Applicaton
Gravity shaking tables are widely used for the fine-particle gravity separation of non-ferrous and precious metal ores, including tungsten, tin, gold, lead, and zinc. They are also employed in the beneficiation of iron, manganese, and rare metal ores; the removal of impurities from non-metallic minerals; and the recovery of materials from scrap metal, electronic waste, and tailings.
More About Our Company
- Technical Parameters
Mode | Coarse Sand Bed Surface | Fine Sand Bed Top | Notched Bed Surface |
| Bed Size(mm) | 4436X1825X1536 | ||
| Stroke(mm) | 16~22 | 10~16 | 10~16 |
| Jig(r/min) | 240~290 | 300~320 | 330~340 |
| Water Consumption(t/h) | 190 | 80 | 50 |
| Capacity(t/h) | 30 | 8 | 8 |
| Feed Size(mm) | 2~0.2 | 0.5~0.037 | 0.074~0.019 |
| Feed Concentration(%) | 20~25 | 15~20 | 15~20 |
| Minimum Mounting Grade（°) | 2°30″ | 1°50″ | 0°45″ |
| Overall Dimension(mm) | 5454X1825X1242 | ||
| Stroke Adjustable Range(mm) | 8~22 | ||
| Power(kw) | 1.5 | ||
Sandreck is a shaking table manufacturer that integrates manufacturing, production, and supply into a single process. We have a professional after-sales team and provide original parts; maintenance costs are very low.
Sandreck has a dedicated production team. The delivery time of our gravity shaking table is generally made within 30 days after the contract is signed.
