Industrial SF Flotation Cell for Sale
SF flotation cell is a high-efficiency mineral-sorting equipment, specifically designed to optimize coarse-particle mineral flotation.
- Roughing, sweeping, and concentrating of copper, lead, zinc, gold, and iron ore minerals.
- Flotation separation of apatite, fluorite, graphite, and other minerals.
- ≤0.5 mm particle size coal slurry quality improvement and ash removal.

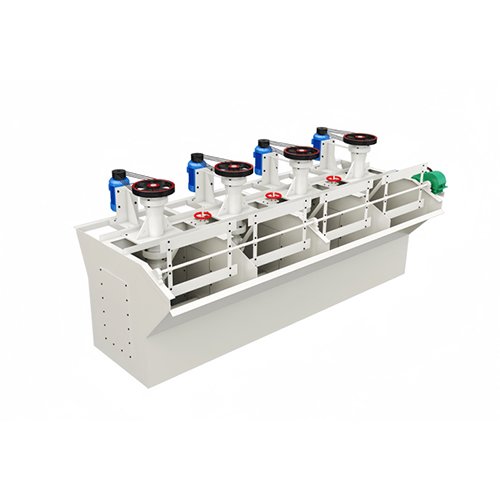

Sandreck's Advanced SF Flotation Machine
The Sandreck SF flotation machine is an agitation-type flotation unit capable of self-aspirating both air and slurry. It can be combined with JJF flotation machines to form a joint flotation circuit and is suitable for high-efficiency separation operations in large-scale mineral processing plants.
SF Flotation Cell Advantages
Optimized impeller design reduces power consumption by 15%~20% compared with traditional models.
In upper and lower circulation mechanisms, the recovery rate of coarse particles (+0.15mm) increases by more than 25%.
The impeller and stator are made of polymer composites, extending service life to 12,000 hours.
Support variable frequency speed regulation and liquid level automatic control to adapt to fluctuations in ore properties.
The self-priming air volume reaches the industry-leading level, reducing the cost of external air supply.
We are the source manufacturer and supplier, with a large factory scale, and the flotation machine currently available for sale is low-priced and affordable.
Experienced SF Flotation Machine Manufacturers
Sandreck‘s SF flotation machine is characterized by high air intake, low energy consumption, and efficient pulp circulation. It is widely used for the separation of coarse-grained minerals in sectors such as coal and non-ferrous metals, and is particularly well-suited for the retrofitting and upgrading of existing plants.
We offer competitive, cost-effective pricing. Welcome your inquiries!
More About Our Company
- Technical Parameter
Category | Model | Effective Volume (m³) | Capacity (m³/min) | Impeller Diameter (mm) | Impeller RPM (r/min) | Motor Power(kw) | Remarks | |
| For Agitating | For Scraper | |||||||
| SF Flotation Cell | SF-0.37 | 0.37 | 0.2-0.4 | 300 | 352-442 | 1.5 | 0.55 | Self-absorption air and pulp horizontal placement,no need foam pump |
| SF-0.65 | 0.65 | 0.3-1.0 | 350 | 336 | 3 | 1.1 | ||
| SF-1.2 | 1.2 | 0.6-1.6 | 450 | 298 | 5.5 | 1.1 | ||
| SF-2.8 | 2.8 | 1.5-3.5 | 550 | 268 | 11 | 1.5 | ||
| SF-4 | 4 | 2-4 | 650 | 237 | 15 | 2.2 | ||
| SF-8 | 8 | 4-8 | 760 | 191 | 30 | 2.2 | ||
| SF-10 | 10 | 5-10 | 760 | 191 | 30 | 3 | ||
| SF-16 | 16 | 6-16 | 850 | 180 | 45 | 3 | ||
| SF-20 | 20 | 8-20 | 730 | 186 | 55 | 3 | ||
We are a manufacturer of flotation cells, integrating manufacturing, production, and supply under one roof. We have a professional after-sales team and provide original parts. Maintenance costs are very low.
Sandreck has a dedicated production team. The delivery time of the Sandreck SF flotation machine is generally made within 20 days after the contract is signed.
