Premium PE Series Jaw Crusher for Sale
Sandreck’s PE jaw crusher is the most widely used primary crushing equipment in mining and quarrying.
- Feed size: ≤1000MM
- Motor power: 15-200KW
- Processing capacity: 5-800T/H
Sandreck's Advanced PE Jaw Crusher
Sandreck’s PE series jaw crusher is a widely used piece of equipment designed to crush large stones into smaller fragments. It uses a motor to drive an eccentric shaft, causing the swing jaw to oscillate periodically. The swing jaw and fixed jaw together form the crushing chamber, where material is crushed by compressive action.
Our PE jaw crusher is a heavy-duty machine engineered specifically for the primary crushing of hard, highly abrasive materials such as granite, basalt, and concrete. Featuring a robust cast-steel frame and high-manganese-steel jaw plates, it delivers long-lasting, stable performance in mining, construction, and recycling applications. Its optimized crushing chamber design not only boosts production efficiency and throughput but also effectively reduces energy consumption.
The PE series crusher offers easy maintenance, flexible adjustments to the discharge opening, and reliable operation, making it an excellent choice for both stationary and mobile crushing production lines. Built to withstand harsh operating conditions, this stone crusher combines rugged construction with cost-effective productivity and meets international standards for durability and safety, making it the ideal solution for your aggregate production and mineral processing needs.
Sandreck PE Jaw Crusher Advantages
The high-manganese steel cast jaw plate is reversible, extending service life and reducing costs.
The jaw plate is precision-machined to ensure strength and rigidity, improving production efficiency.
Based on large-scale domestic applications, it integrates a variety of advanced technologies.
Sandreck PE jaw crusher saves 15%- 30% energy per unit, and the system saves more than double that amount.
The Sandreck PE series jaw crusher is inexpensive and low-energy, saving you money.
Unique lubrication system, safe and reliable, easy replacement of parts, and small maintenance workload.
Powerful PE Series Jaw Crusher
The Sandreck PE series jaw crusher can crush various ores with a compressive strength of up to 320 MPa into a medium particle size. This equipment is typically used in conjunction with cone crushers, impact crushers, sand-making machines, and other similar equipment.

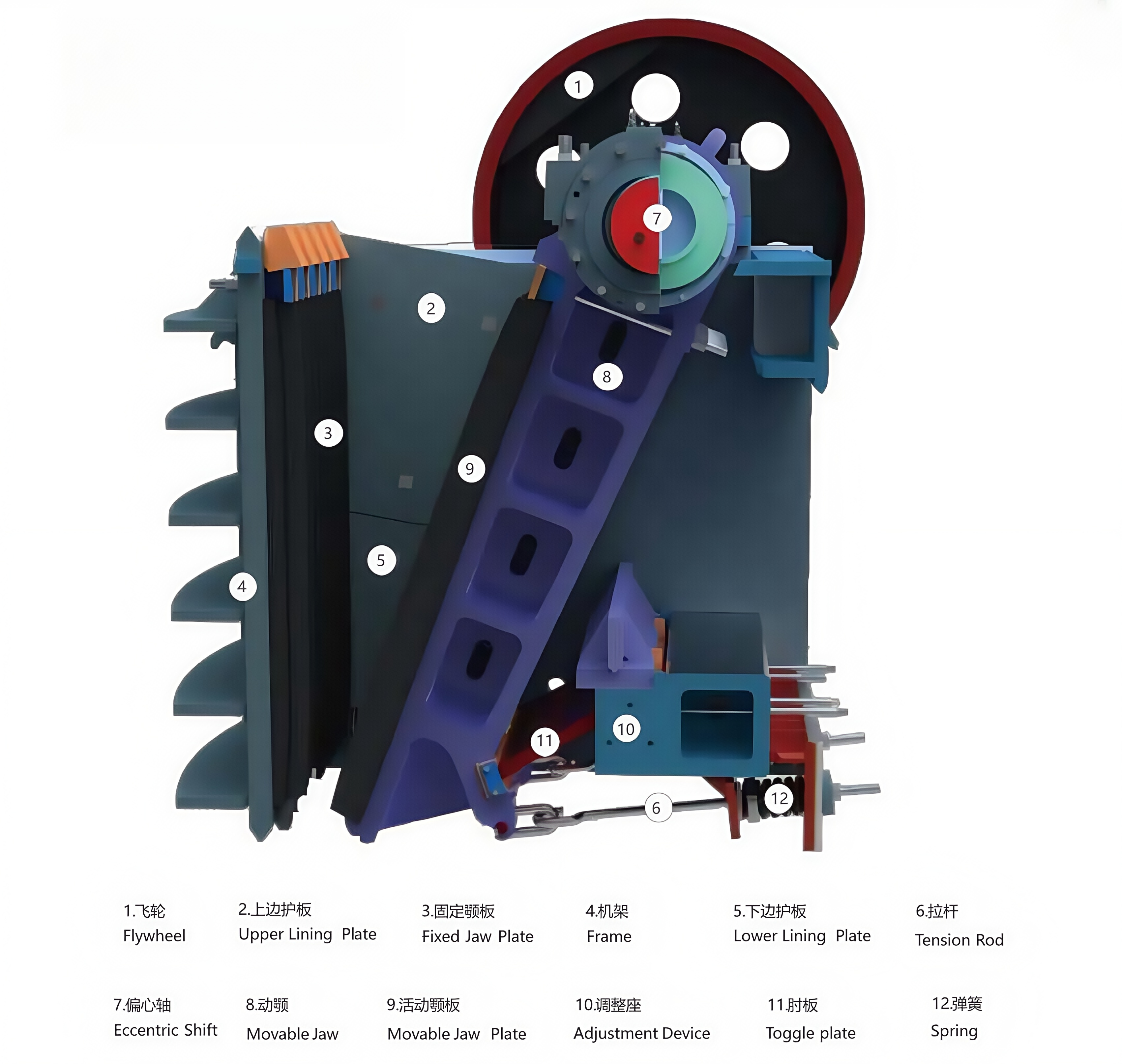

PE Jaw Crusher Main Components
The Sandreck PE jaw crusher is primarily composed of components such as the flywheel, liners (upper and lower), jaw plates (fixed and movable), frame, tie rod, eccentric shaft, adjustment mechanism, toggle plate, and springs. These components work in concert, enabling the PE series jaw crusher to efficiently crush material.

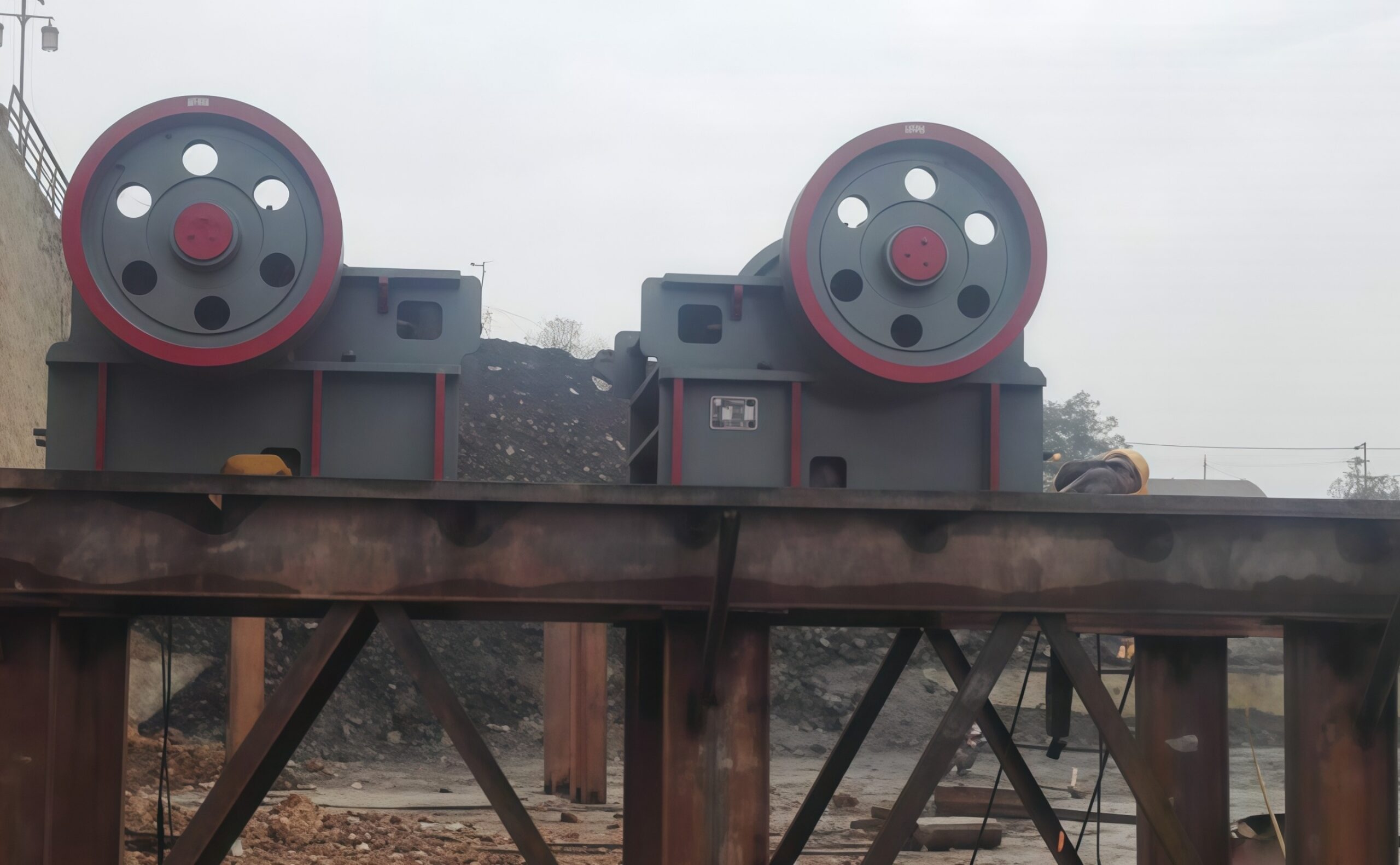

PE Jaw Crusher Cases
Sandreck is a well-known Chinese integrated supplier of crushed stone equipment and solutions and has provided services to over 1,000 sand and gravel processing plants.

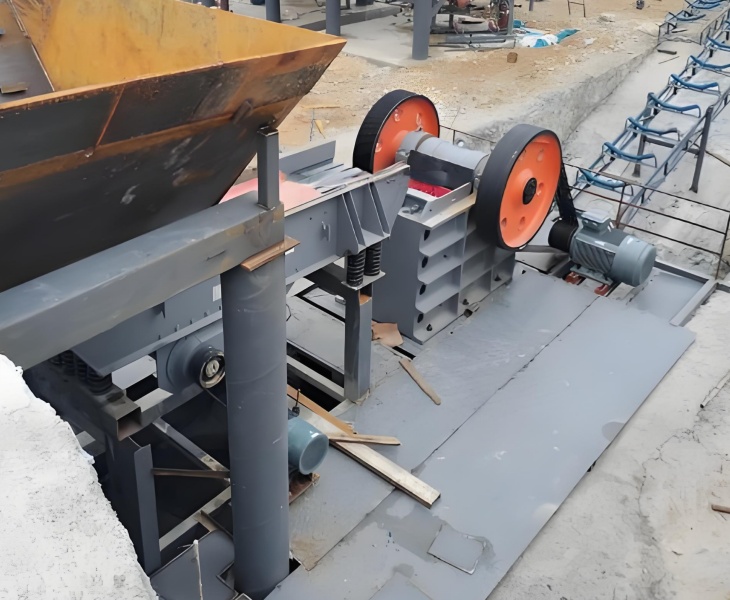

Processing material: Cobblestone
Capacity: 100 t/h
Finished size: ＜50mm

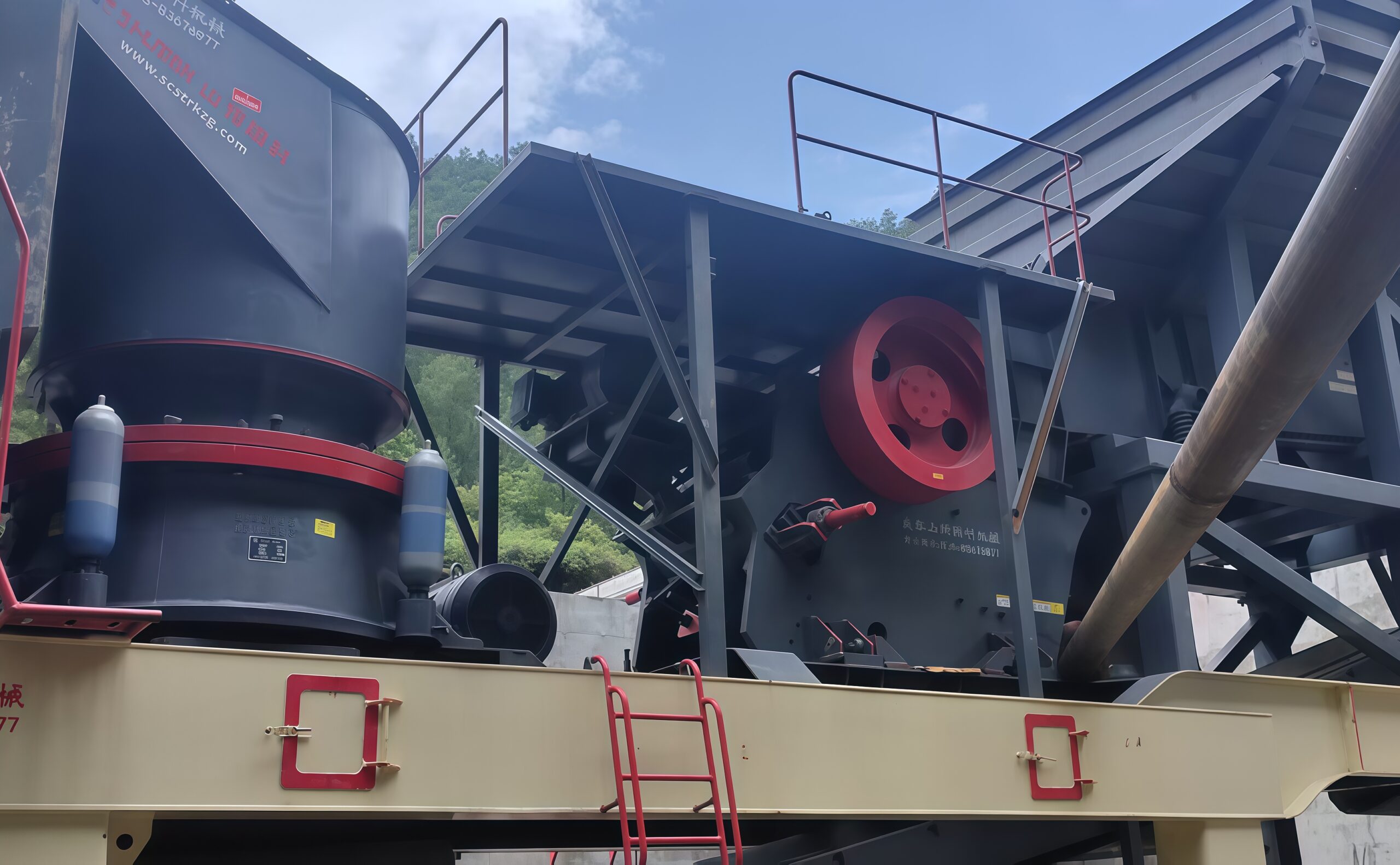

Processing material: Quartz
Capacity: 200-400 t/h
Finished size: 0-5mm, 5-10mm, 10-20mm, 20-31.5mm
Technical Parameters
- PE Jaw Crusher
| Model | Feed Port Size mm | Maximum Feed Side Length mm | Discharge Port Size mm | Processing Power t/h | Motor Power kw | Dimensions mm |
| PE-150×250 | 150×250 | 125 | 10-40 | 1-3 | 5.5 | 896x745x935 |
| PE-150×750 | 150×750 | 125 | 18-48 | 5-16 | 15 | 1200x1500x1200 |
| PE-250X400 | 250×400 | 200 | 20-50 | 5-20 | 15 | 1430x1310x1340 |
| PE-250×750 | 250×750 | 210 | 25-60 | 15-30 | 22-30 | 1667x1545x1020 |
| PE-250X1000 | 250×1000 | 210 | 25-60 | 15-50 | 30-37 | 1695x1921x1440 |
| PE-250×1200 | 250×1200 | 210 | 25-60 | 20-60 | 37-45 | 2192x1900x1950 |
| PE-400×600 | 400×600 | 350 | 40-100 | 15-60 | 30-37 | 1700x1732x1653 |
| PE-500×750 | 500×750 | 425 | 50-100 | 40-110 | 45-55 | 1950x1878x1855 |
| PE-600×900 | 600×900 | 480 | 65-160 | 90-180 | 55-75 | 2200x2008x1855 |
| PE-750×1060 | 750×1060 | 630 | 80-140 | 110-320 | 90-110 | 2624x2302x3110 |
| PE-900×1200 | 900×1200 | 750 | 95-180 | 220-450 | 132 | 3550x2823x3196 |
| PE-1000×1200 | 1000×1200 | 850 | 95-190 | 230-500 | 160 | 3800x3166x3045 |
| PE-1200×1500 | 1200×1500 | 1020 | 150-300 | 400-800 | 220 | 4930x3148x3703 |
| PE-1500×1800 | 1500×1800 | 1200 | 220-350 | 400-1000 | 355 | 5630x3210x4120 |
Testimonials
I purchased a Sandreck PE jaw crusher in 2024 and have had no problems with it so far. The machine runs smoothly, and the Sandreck staff is very nice and dedicated to training my employee to use it!
Cai MingPerchase ManagerI am the purchasing manager of a sand and gravel plant. Our company has purchased a set of Sandreck’s sand and gravel production line equipment, including a PE jaw crusher, which is very stable, and my boss has a very high evaluation of it. I will buy Sandreck’s equipment again if I need it in the future!
AustinPerchase Manager
The Sandreck PE series jaw crusher is suitable for processing hard ores such as iron ore, granite, and construction waste.
Before starting the machine, make sure there is no one near the equipment, ensure uniform feeding during operation, and monitor the operating status at all times.
Sandreck PE jaw crusher includes frame, jaw plate, eccentric shaft, side guard plate, rotating parts, safety device, adjustment device, etc.
We are a Chinese rock crusher factory. Each unit is at the ex-factory price. You can leave a message via WhatsApp (+8613666293477). Later, we will contact you and provide pricing for our PE jaw crusher.
