Powerful Tracked Jaw Crusher for Sale
A crawler jaw crusher can quickly transfer and adapt to complex terrain to achieve on-site material mobile crushing operations.
- Feeding particle size: ≤800MM
- Motor power: 45-710KW
- Processing capacity: 30-800T/H
Sandreck's Advanced Crawler Jaw Crusher
The Sandreck crawler jaw crusher is equipped with the newly upgraded PEV series jaw crusher host. This unit features an optimized crushing stroke and a shallow nip-angle design, enabling efficient crushing of hard rock from the top to the bottom of the crushing chamber.
Our tracked jaw crusher offers high quality at a competitive price, providing a one-stop solution for primary crushing operations. It significantly boosts efficiency in aggregate production and open-pit mining, making crushing hard rock and processing raw materials effortless.
Crawler Jaw Crusher Advantages
The Sandreck crawler jaw crusher is equipped with a crawler chassis, which can adapt to rugged terrain and be transported quickly.
The tracked jaw crusher uses a PEV jaw crusher as the main machine, enabling efficient crushing of various cavity materials.
Our crawler jaw crusher adopts a modular design and full hydraulic drive, with one-button start and stop for precise control.
Sandreck tracked jaw crusher is resistant to extreme environments and can easily handle highly corrosive materials.
The components of our tracked jaw crusher are easy to replace, thus minimizing the downtime to the greatest extent.
Our crawler jaw crusher integrates multiple pieces of equipment into a single machine, enabling it to complete both crushing and screening.
Crawler Jaw Crusher Applications
The Sandreck tracked jaw crusher is suitable for industries such as mining, construction, and roadworks, and primarily processes materials of medium-to-high hardness, including granite, basalt, limestone, concrete, and construction waste. Capable of rapidly performing primary crushing, the equipment directly produces aggregates with adjustable particle sizes ranging from 0 to 200 mm, thereby meeting environmental compliance requirements and enabling high-efficiency operations.
More About Our Company
- Technical Parameters
Equipment Model | YG935E69L | YG1138E71L |
| Feeder Model | GZD9638 | GZD1142 |
| Crusher Model | PEV600x900 | PEV750x1060 |
| Main belt Model | B800x8.5m | B1000x9m |
| Main Belt Discharge Height (mm) | 3200 | 3500 |
| Side Belt Model (optional) | B450x3m | B500x3.5m |
| Measured Belt Discharge Height (mm) | 2800 | 3100 |
| Engine Power (kw) | 180 | 200 |
| Transportation Dimensions (mm) | 11900x3100x3650 | 13300x3100x4500 |
| Transportation Weight (t) | 43.5 | 59 |
| Operation Dimensions (mm) | 12100x3100x4100 | 13500x3100x4800 |
The price of Sandreck tracked jaw crusher ranges from 200,000 to 1,000,000 US dollars, depending on the model, configuration, and production capacity requirements.
Our crawler jaw crusher is equipped with a jaw crusher, motor, conveyor belt, and an intelligent control system as standard, and a diesel generator set is optional.

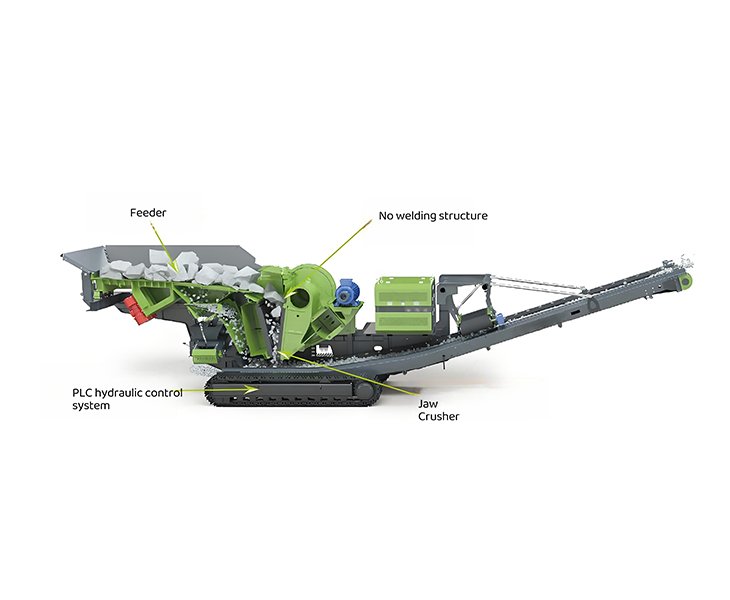

The operating process of the Sandreck tracked jaw crusher: material is fed into the jaw crushing cavity by a vibrating feeder for extrusion and crushing; the finished product is discharged by a conveyor belt; and the crawler chassis enables flexible movement.
