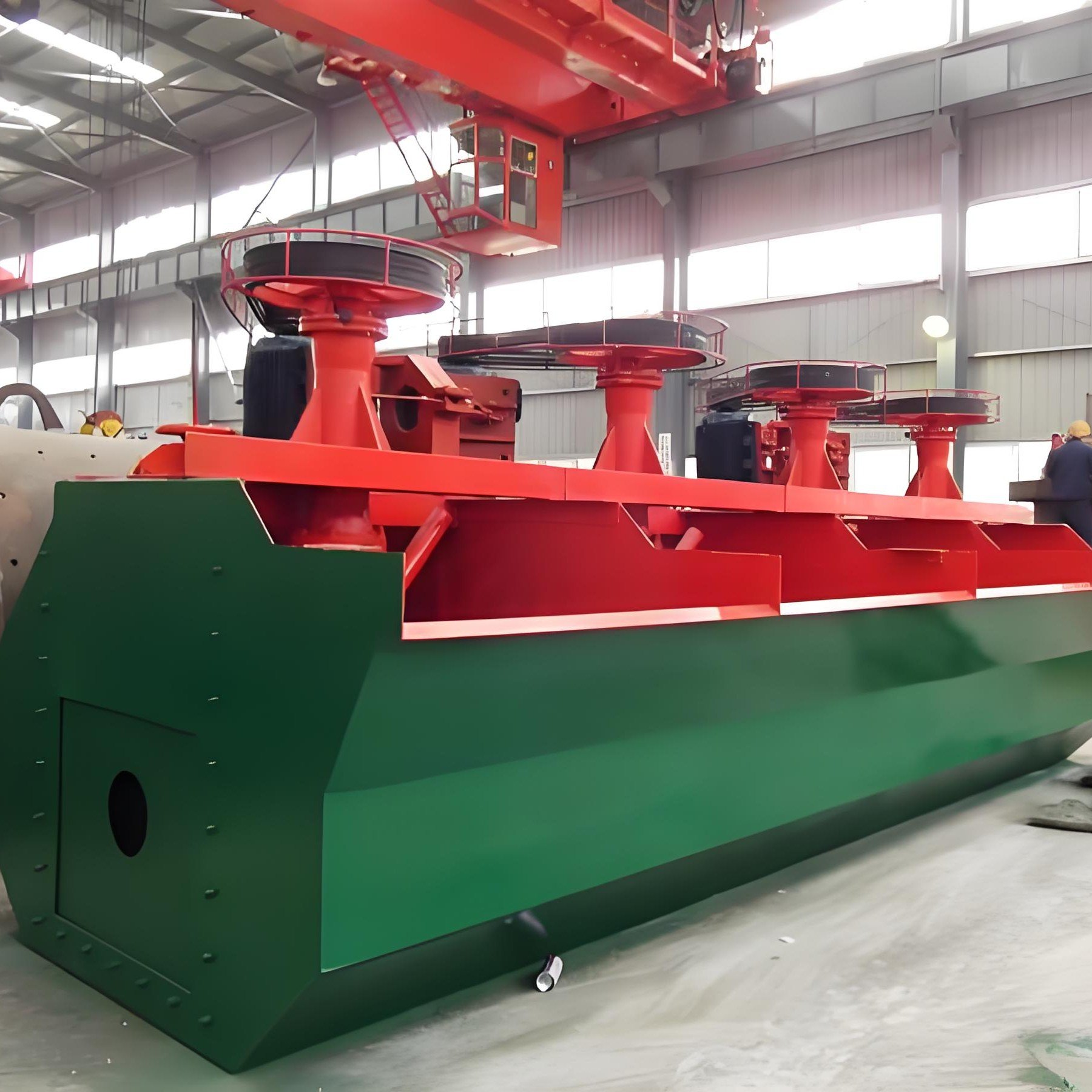

BF Flotation Cell
- Revolutionary self-priming flotation equipment
- Roughing and sweeping of copper, lead, zinc, gold and other metal ores
- Fine sorting of non-metallic ores (phosphorus, fluorite, etc.)
- Retrofitting old flotation lines for efficiency upgrades

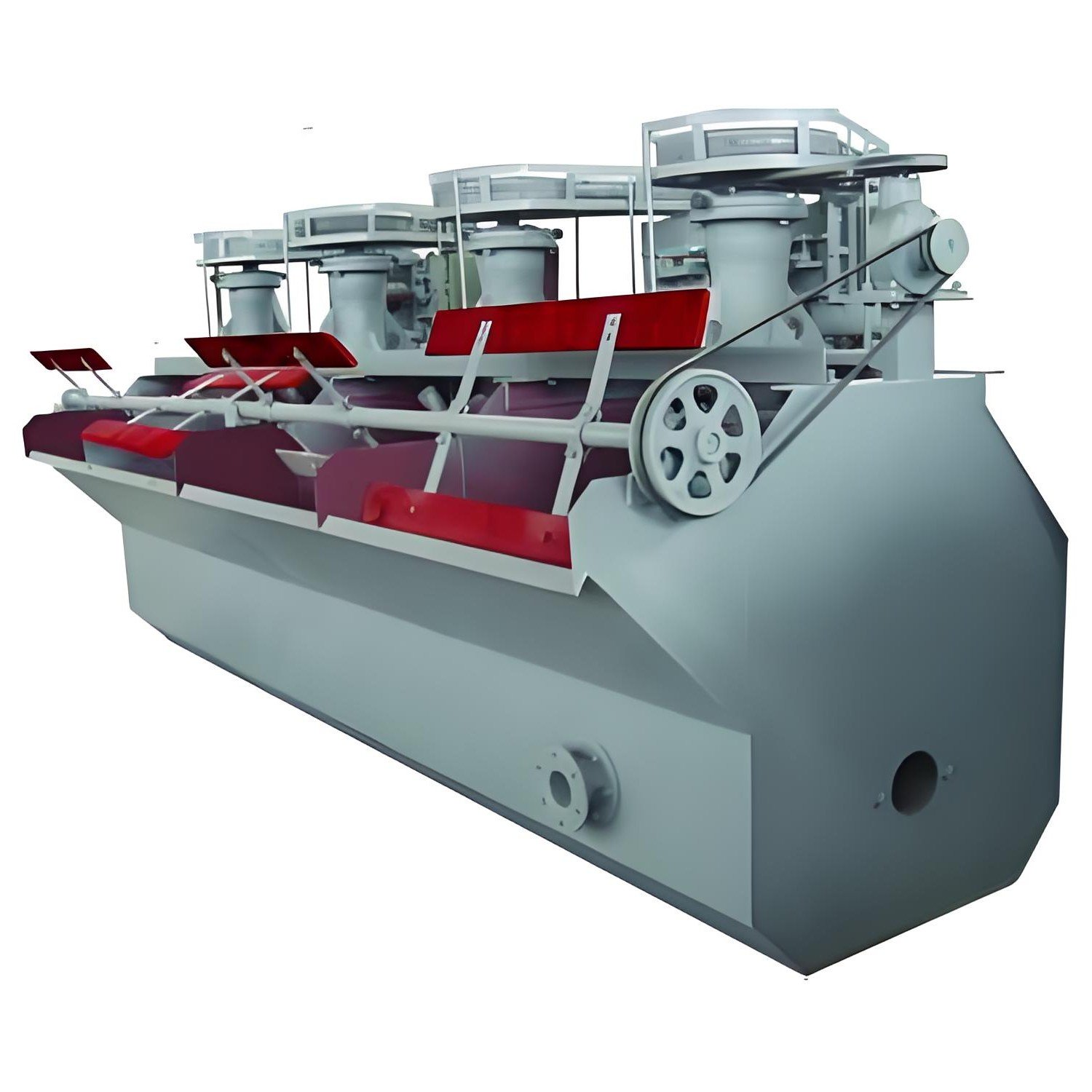

What is BF Flotation Cell

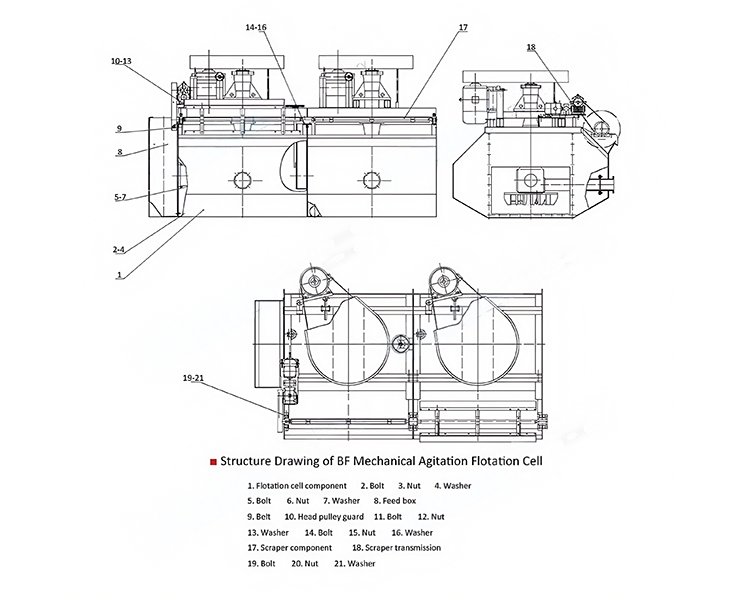

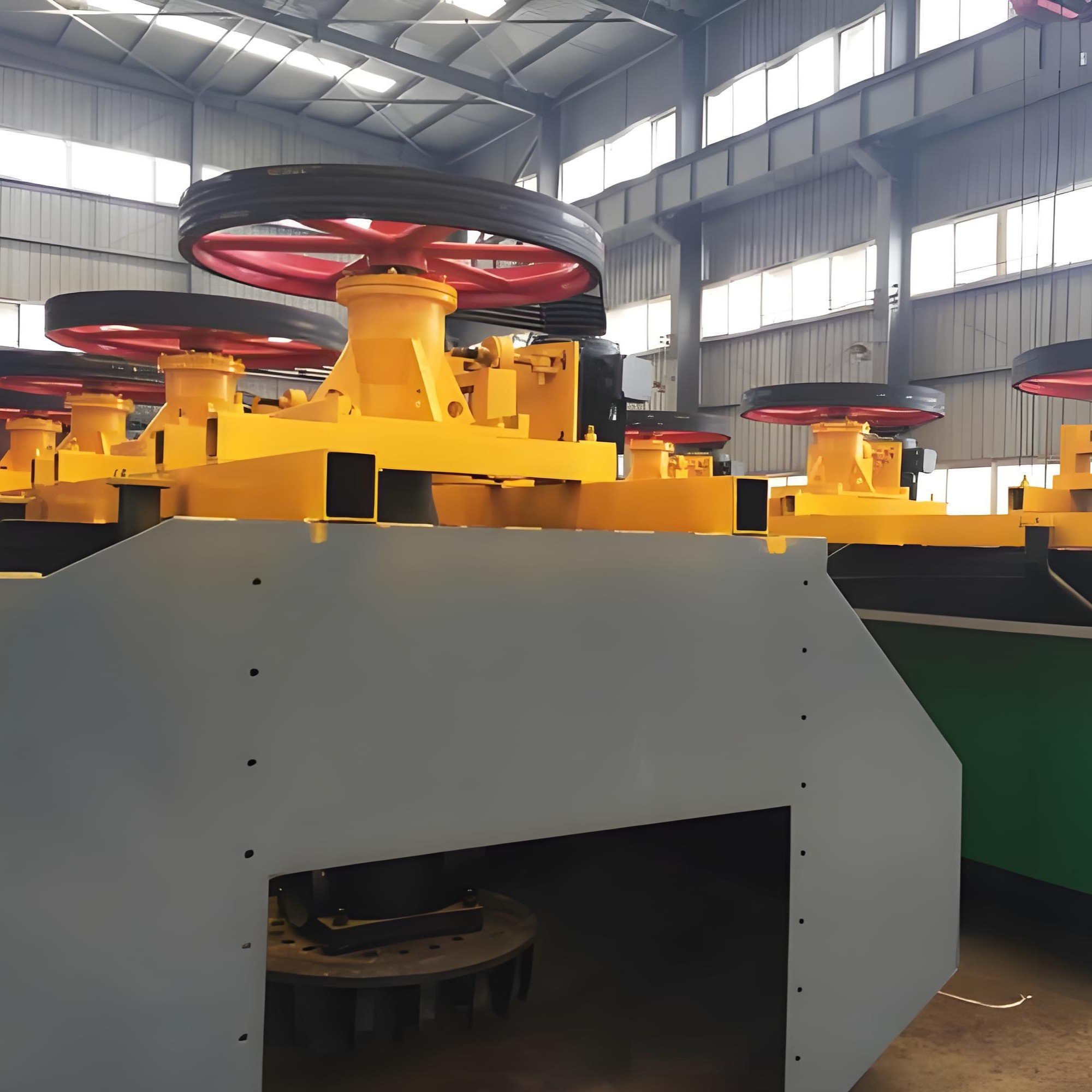

Sandreck BF Flotation Cell can easily handle key processes such as roughing and scavenging, making mineral separation more efficient and worry-free, mainly composed of impellers, cover plates, main shafts, center cylinders, tanks, etc. The entire impeller structure is installed on the main beam of the tank body and is driven by an electric motor through a V-belt.
BF Flotation Cell Advantages
The closed double-truncated cone impeller structure enhances slurry circulation, and low-speed operation reduces friction and energy consumption.
The single machine integrates the entire process of suction, slurry suction, and flotation, with simple process and reduced operating costs.
Equipped with an automated slurry level control system, it can accurately adjust the thickness of the foam layer and the separation concentration.
Multi-slot step configuration, the middle ore foam can return to the front section by itself, adapting to the needs of roughing and scavenging.
Equipped with automatic and electronic control devices for the slurry surface, it is easy to adjust.
We use a professional production and manufacturing team to deliver within 20 working days.
Why Choose Us
As a professional manufacturer and supplier in China, Sandreck has a wide variety of flotation machines available for sale at very reasonable prices. It is the best choice for your engineering project.
Company Advantage
Sandreck is a BF Flotation Cell Manufacturing Company integrating R&D and design, production and sales. It possesses over 100 sets of machining equipment of various specifications, including CNC vertical lathes, deep hole drills, laser cutting machines, planers, CNC lathes, CNC boring and milling machines, etc.
We are a Mining machinery corporation. Our BF Flotation Cell are used by customers all over the world because we will tailor professional solutions and mature supporting design plans for you based on your needs, creating the greatest value for you.
Golden Service
For your BF Flotation Cell equipments, we stand by your side 24 hours a day, providing round-the-clock protection for your choices!
We will arrange engineers to conduct actual surveys and scheme designs at your construction site, and provide customized product services according to your needs.
Our production process is clear and transparent, strictly controlled by professional quality inspection, with accurate inventory preparation and timely delivery.
We will dispatch engineers go to the site to provide technical training on equipment installation and commissioning, operation, maintenance and other aspects.
24-hour customer service response mechanism, providing you with technical services throughout the entire life cycle.
More About Our Company
- Technical Parameter
Model | Effective Volume (m³) | Impellers | Air Intake
(m3/m².min) | Motor | Capacity | ||
| Diameter (mm) | Speed (m/s) | Model | Power(kw) | (m³/min) | |||
| BF-0.37 | 0.37 | 286 | 72 | 0.9-1.05 | Y90L-4 | 1.5 | 0.2-0.4 |
| BF-0.65 | 0.35 | 300 | 7.35 | Y132S-6 | 3 | 0.3-0.7 | |
| BF-1.2 | 1.2 | 450 | 7.02 | 0.9-1.10 | Y132M2-6 | 5.5 | 0.6-1.2 |
| BF-2.8 | 2.8 | 550 | 8.06 | Y180L-8 | 11 | 1.4-3.0 | |
| BF-4.0 | 4 | 650 | 8 | 0.9-1.10 | Y200L-8 | 15 | 2.4-4.0 |
| BF-6.0 | 6 | 700 | 7.5 | Y225S-8 | 18.5 | 3.0-6.0 | |
| BF-8.0 | 8 | 760 | 7.5 | 0.9-1.10 | Y250M-8 | 30 | 4.0-8.0 |
We are a manufacturer of Flotation Cell, integrating manufacturing, production and supply in one. We have a professional after-sales team, there are original parts to provide, which means our maintenance costs are very low.
Sandreck have a dedicated production team. The delivery time of OUR BF Flotation Cell is generally made within 20 days after the contract is signed.
You can send us a message on WhatsApp (+86 13666293477) or leave your contact details on our website，later our online customer service will contact you.
